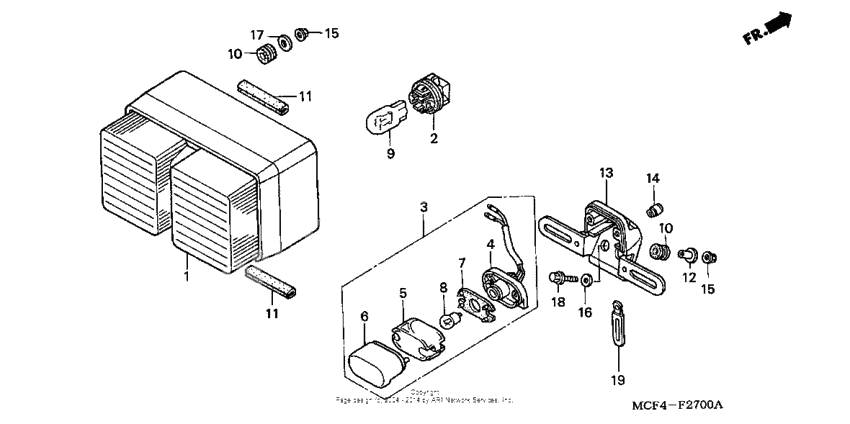

Taillight
Taillight
Lens, taillight (Ref #1)
1
Part #33710-MCF-671
SOCKET (Ref #2)
2
Part #33720-GZ9-003
Light assy., license (Ref #3)
3
Part #33720-MAT-A01
Base, license (Ref #4)
4
Part #33721-MAT-A00
Lens, license (Ref #5)
5
Part #33722-MZ0-710
Cover, license light (Ref #6)
6
Part #33727-ME4-671
Прокладка (Ref #7)
7
Part #33729-MB1-003
Bulb (Ref #8)
8
Part #34909-505-003
Bulb (12v 21/5w ece) (Ref #9)
9
Part #34906-MBB-611
Rubber, fr. fender mounting (Ref #10)
10
Part #61103-357-000
Rubber, fr. fender mounting (Ref #10)
10
Part #61103-357-000
Rubber, fr. fender mounting (Ref #10)
10
Part #61103-357-000
Rubber, fr. fender mounting (Ref #10)
10
Part #61103-357-000
Rubber, protector (Ref #11)
11
Part #64121-MCF-000
Rubber, protector (Ref #11)
11
Part #64121-MCF-000
Rubber, protector (Ref #11)
11
Part #64121-MCF-000
Rubber, protector (Ref #11)
11
Part #64121-MCF-000
Collar, rr. fender (Ref #12)
12
Part #80114-KE2-940
Brkt, number plate (Ref #13)
13
Part #84701-ML7-670
Nut, special (4mm) (Ref #14)
14
Part #90302-MB2-000
Гайка (Ref #15)
15
Part #94050-06000
Гайка (Ref #15)
15
Part #94050-06000
Гайка (Ref #15)
15
Part #94050-06000
Гайка (Ref #15)
15
Part #94050-06000
Шайба (Ref #16)
16
Part #94103-06000
Шайба (Ref #17)
17
Part #94103-06800
BOLT (Ref #18)
18
Part #95701-060-250-8
