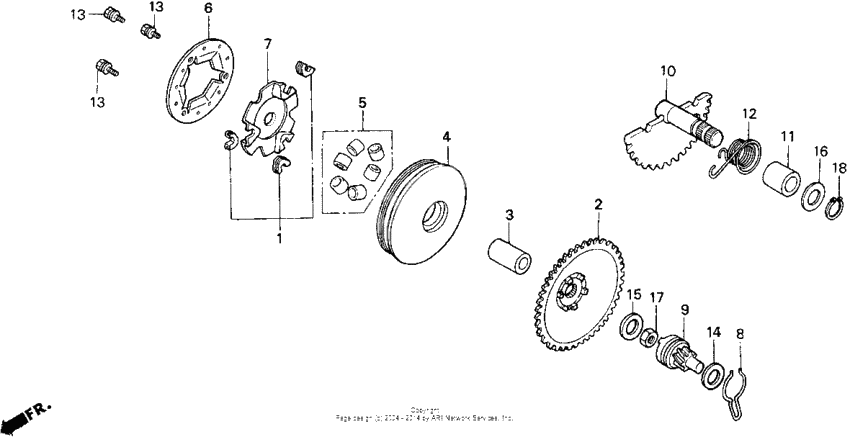

Drive face
Drive face
Piece set, slide (Ref #1)
1
Part #22011-GW0-000
Face comp.,drive (Ref #2)
2
Part #22102-GAH-720
Boss,drive face (Ref #3)
3
Part #22105-GAH-720
Face, movable drive (Ref #4)
4
Part #22110-GS7-980
Roller set, weight (Ref #5)
5
Part #22123-GG2-750
Валик (Ref #6)
6
Part #22126-GAH-600
Plate,ramp (Ref #7)
7
Part #22131-GAH-720
Spg,kick driven g (Ref #8)
8
Part #28223-GAH-720
Gear, starter idle (Ref #9)
9
Part #28230-GBL-870
Spindle comp,kick (Ref #10)
10
Part #28250-GN2-601
Bush, kick spindle (Ref #11)
11
Part #28253-GBL-003
Spring kick retur (Ref #12)
12
Part #28281-GN2-602
Washer, thrust, 10mm (Ref #14)
14
Part #90412-329-000
Шайба (Ref #15)
15
Part #90426-KBN-900
Шайба (Ref #16)
16
Part #90451-GBL-870
Гайка (Ref #17)
17
Part #94001-122-000-S
Circlip, external, 14mm (Ref #18)
18
Part #9451114000
