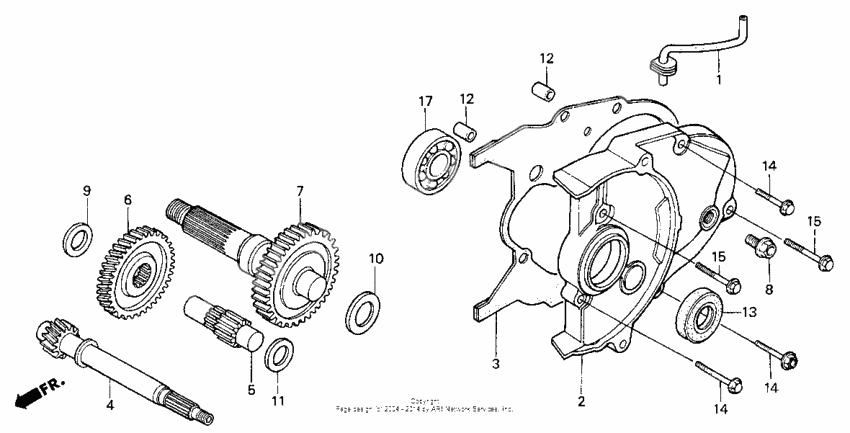

Трансмиссия
Трансмиссия
Tube, breather (Ref #1)
1
Part #11211-GW0-000
Cover, transmission (Ref #2)
2
Part #21301-GBL-870
Gasket, trans cvr (Ref #3)
3
Part #21395-GBL-870
Driveshaft (12t) (Ref #4)
4
Part #23411-GW0-010
SHAFT,COUNTER (Ref #5)
5
Part #23421-GW0-000
Gear counter (Ref #6)
6
Part #23422-GW0-000
Gear, final (45t) (Ref #7)
7
Part #23430-GBL-880
Bolt, check, 8mm (Ref #8)
8
Part #90035-GF4-000
Washer, side, 14mm (Ref #9)
9
Part #90429-GET-000
Washer, side (14mm) (Ref #9)
9
Part #90429-GBL-871
Washer, thrust, 17mm (Ref #10)
10
Part #90454-KF0-000
Шайба (Ref #11)
11
Part #90454-350-000
Стопор (Ref #12)
12
Part #94301-10140
Стопор (Ref #12)
12
Part #94301-10140
Стопор (Ref #12)
12
Part #94301-10140
Стопор (Ref #12)
12
Part #94301-10140
Oil seal, 17x30x5 (nok) (Ref #13)
13
Part #91204-GN2-005
Bolt, flange, 6x35 (Ref #15)
15
Part #96001-0603500
Bolt, flange, 6x35 (Ref #15)
15
Part #96001-0603500
Bolt, flange, 6x35 (Ref #15)
15
Part #96001-0603500
Bolt, flange, 6x35 (Ref #15)
15
Part #96001-0603500
Bearing (6203) (Ref #17)
17
Part #96100-6203300
