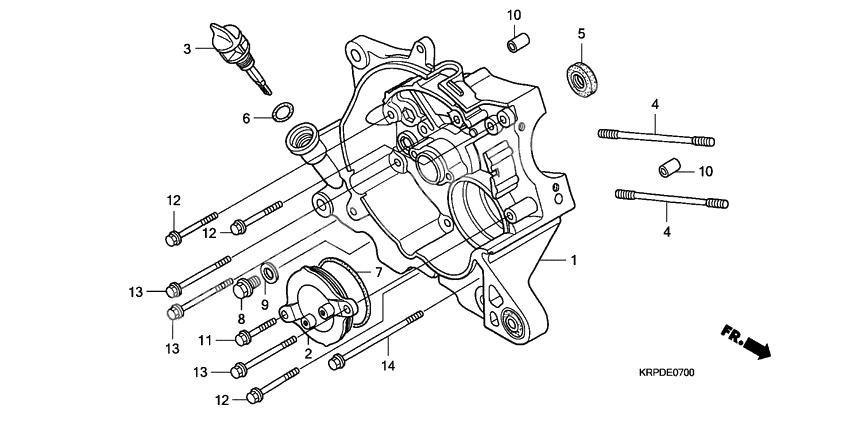

Right crankcase
Right crankcase
Crankcase comp. (Ref #1)
1
Part #11100-KVT-900
COVER (Ref #2)
2
Part #11361-KPL-900
Датчик уровня масла (Ref #3)
3
Part #15651-KRP-980
Bolt,a stud 7x181 (Ref #4)
4
Part #90031-KPL-900
Bolt,a stud 7x181 (Ref #4)
4
Part #90031-KPL-900
Bolt,a stud 7x181 (Ref #4)
4
Part #90031-KPL-900
Bolt,a stud 7x181 (Ref #4)
4
Part #90031-KPL-900
Oil seal,16x26x7 (Ref #5)
5
Part #91201-KPL-901
Прокладка (Ref #6)
6
Part #91307-035-000
O-ring, 64x2 (Ref #7)
7
Part #91307-639-000
BOLT (Ref #8)
8
Part #92800-12000
Шайба (Ref #9)
9
Part #94109-12000
Dowel pin, 8x20 (Ref #10)
10
Part #9430108200
Dowel pin, 8x20 (Ref #10)
10
Part #9430108200
Dowel pin, 8x20 (Ref #10)
10
Part #9430108200
Dowel pin, 8x20 (Ref #10)
10
Part #9430108200
Bolt, flange, 6x22 (Ref #11)
11
Part #95701-0602200
Bolt,flange,6x115 (Ref #14)
14
Part #95701-061-150-0
-
-
Цена: 110.00 р.
Доступно: 2
-
