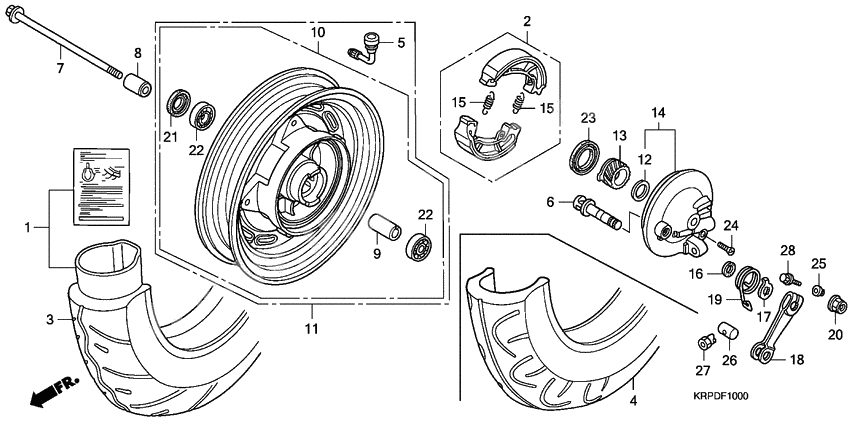

Transom + tube
Transom + tube
Отсутствующе (Ref #2)
2
Part #06430-KTC-900
Tire(irc) (Ref #4)
4
Part #42711-KRP-982
Tire,(dun) (Ref #4)
4
Part #42711-KRP-981
Valve,rim (Ref #5)
5
Part #42753-KRP-980
Cam,rear brake (Ref #6)
6
Part #43141-KPL-900
Axle,fr wheel (Ref #7)
7
Part #44301-KPL-900
Collar,fr wheel s (Ref #8)
8
Part #44311-KPL-900
Collar fr wheel d (Ref #9)
9
Part #44620-KPL-900
Wheel sub assy. (Ref #11)
11
Part #44650-KRP-S20
Washer,spdmt gear (Ref #12)
12
Part #44809-KPL-900
Gear,spdmt (Ref #13)
13
Part #44811-KPL-900
Panel sub comp. (Ref #14)
14
Part #45010-KRP-S10
Boot,pin (Ref #15)
15
Part #45133-KPL-900
Boot,pin (Ref #15)
15
Part #45133-KPL-900
Boot,pin (Ref #15)
15
Part #45133-KPL-900
Boot,pin (Ref #15)
15
Part #45133-KPL-900
Dust seal, brake cam (Ref #16)
16
Part #45134-250-000
Indicator,front b (Ref #17)
17
Part #45145-KPL-900
Arm,fr brake (Ref #18)
18
Part #45410-KRP-980
Spg.brk arm retur (Ref #19)
19
Part #45435-KPL-900
Nut,flg spl 12mm (Ref #20)
20
Part #90306-KPL-900
Seal,dust,20x32x5 (Ref #21)
21
Part #90754-KPL-900
Bearing,ball radi (Ref #22)
22
Part #90912-KPL-900
Bearing,ball radi (Ref #22)
22
Part #90912-KPL-900
Bearing,ball radi (Ref #22)
22
Part #90912-KPL-900
Bearing,ball radi (Ref #22)
22
Part #90912-KPL-900
Seal,dust,41x60x7 (Ref #23)
23
Part #91253-KPL-900
Screw, oval (5x18) (Ref #24)
24
Part #93700-050180A
Гайка (Ref #25)
25
Part #94050-06000
Joint b, brake arm (Ref #26)
26
Part #9501532001
Nut b, brake rod adjusting (Ref #27)
27
Part #9501542000
Bolt, flange, 6x32 (Ref #28)
28
Part #95701-0603200
