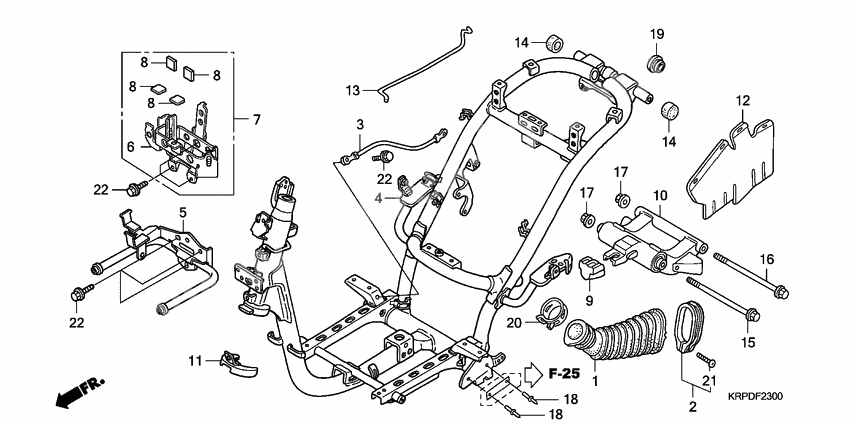

Frame body
Frame body
Канал (Ref #1)
1
Part #11345-GCC-000
BAND (Ref #2)
2
Part #11346-KCW-870
Cable,eng-frm ear (Ref #3)
3
Part #32603-KRP-880
Body comp (Ref #4)
4
Part #50100-KRP-981
STAY (Ref #5)
5
Part #50310-KRP-901
Tray comp (Ref #7)
7
Part #50330-KRP-981
Rubber, link stopper (Ref #9)
9
Part #50352-GW0-730
Link sub assy,eng (Ref #10)
10
Part #50355-KPL-900
Protector,hndl st (Ref #11)
11
Part #53123-KRP-900
Rod,body opener (Ref #13)
13
Part #81256-KPL-901
CUSHION (Ref #14)
14
Part #83561-KPL-840
CUSHION (Ref #14)
14
Part #83561-KPL-840
CUSHION (Ref #14)
14
Part #83561-KPL-840
CUSHION (Ref #14)
14
Part #83561-KPL-840
Bolt, flg (10x210) (Ref #15)
15
Part #90105-KJ9-000
Bolt,frange,10x23 (Ref #16)
16
Part #90106-GCC-000
Nut, u, 10mm (Ref #17)
17
Part #90304-GE8-003
Nut, u, 10mm (Ref #17)
17
Part #90304-GE8-003
Nut, u, 10mm (Ref #17)
17
Part #90304-GE8-003
Nut, u, 10mm (Ref #17)
17
Part #90304-GE8-003
Plug,frame end (Ref #19)
19
Part #90862-GCC-000
Clamp d29,tube (Ref #20)
20
Part #91405-KPL-900
Screw, pan, 4x25 (Ref #21)
21
Part #93500-040250G
