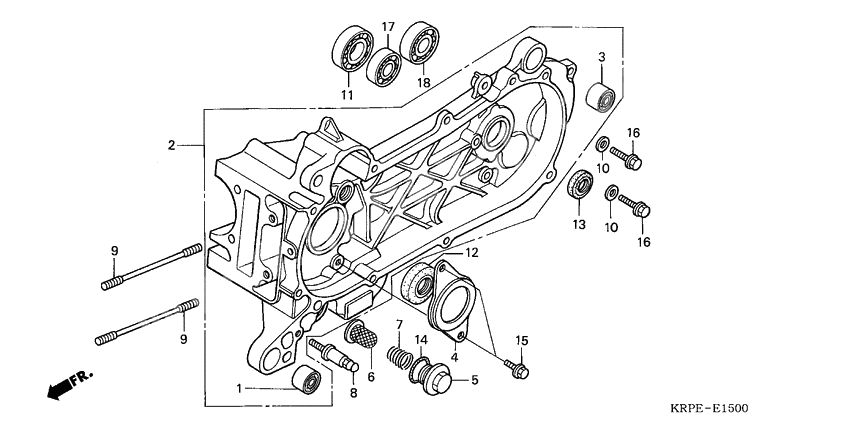

Left crankcase
Left crankcase
Bush, engine hanger rubber (Ref #1)
1
Part #11102-187-003
Crankcase comp. (Ref #2)
2
Part #11200-KPL-901
Bush, rr. (lower) (Ref #3)
3
Part #11203-GC7-300
PLATE (Ref #4)
4
Part #11204-GCC-000
CAP (Ref #5)
5
Part #12361-KPL-900
Screen, oil filter (Ref #6)
6
Part #15421-107-000
Spg,oil filter sc (Ref #7)
7
Part #15426-KCW-880
Bolt,m/stand spg. (Ref #8)
8
Part #90008-KRP-980
Bolt,b stud 7x186 (Ref #9)
9
Part #90032-KPL-900
Bolt,b stud 7x186 (Ref #9)
9
Part #90032-KPL-900
Bolt,b stud 7x186 (Ref #9)
9
Part #90032-KPL-900
Bolt,b stud 7x186 (Ref #9)
9
Part #90032-KPL-900
Washer, sealing, 8mm (Ref #10)
10
Part #90474-333-000
Washer, sealing, 8mm (Ref #10)
10
Part #90474-333-000
Washer, sealing, 8mm (Ref #10)
10
Part #90474-333-000
Washer, sealing, 8mm (Ref #10)
10
Part #90474-333-000
Brg,ball radial 6 (Ref #11)
11
Part #91004-GCC-000
Oil seal 20.8x53x (Ref #12)
12
Part #91202-KPL-901
Oil seal,17x30x6 (Ref #13)
13
Part #91204-KPL-901
O-ring, 30.8mm (Ref #14)
14
Part #91302-001-020
BOLT (Ref #15)
15
Part #95701-060-160-0
Bolt, flange, 8x12 (Ref #16)
16
Part #95701-0801200
Bolt, flange, 8x12 (Ref #16)
16
Part #95701-0801200
Bolt, flange, 8x12 (Ref #16)
16
Part #95701-0801200
Bolt, flange, 8x12 (Ref #16)
16
Part #95701-0801200
Bearing, radial ball, 6201 (Ref #17)
17
Part #96100-6201000
Bearing, radial ball, 6202 (Ref #18)
18
Part #96100-6202000
