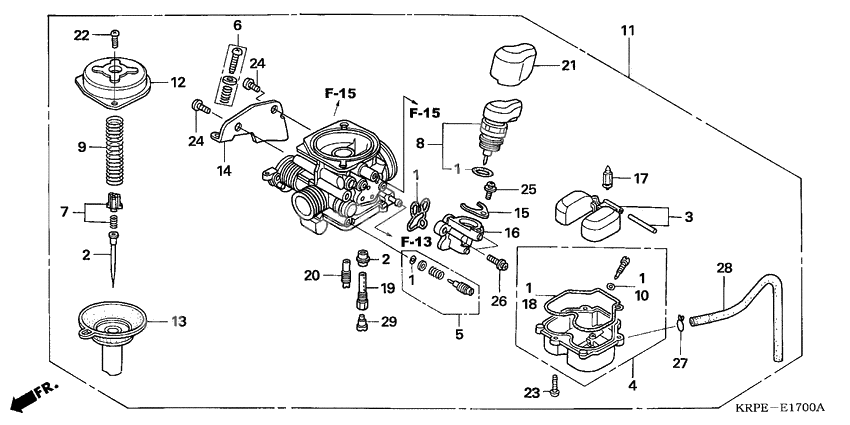

Carburetor assy
Carburetor assy
NEEDLE SET,JET (Ref #2)
2
Part #16012-KRP-981
NEEDLE SET,JET (Ref #2)
2
Part #16012-KRP-981
NEEDLE SET,JET (Ref #2)
2
Part #16012-KRP-981
NEEDLE SET,JET (Ref #2)
2
Part #16012-KRP-981
FLOAT SET (Ref #3)
3
Part #16013-KRP-981
Chamber set (Ref #4)
4
Part #16015-KRP-982
Screw set,a (Ref #5)
5
Part #16016-KRP-981
Screw set,b (Ref #6)
6
Part #16028-KRP-981
Plate set,valve (Ref #7)
7
Part #16037-KRP-981
Auto by-st assy (Ref #8)
8
Part #16046-KRP-981
Spg,compression c (Ref #9)
9
Part #16050-KRP-981
Прокладка (Ref #10)
10
Part #16075-KRP-981
Карбюратор (Ref #11)
11
Part #16100-KRP-983
Верх (Ref #12)
12
Part #16107-KRP-981
Piston comp,vacuu (Ref #13)
13
Part #16111-KRP-981
STAY (Ref #14)
14
Part #16119-KRP-982
PLATE,SET (Ref #15)
15
Part #16131-KRP-981
Body comp,by-st (Ref #16)
16
Part #16140-GFC-901
Valve comp,float (Ref #17)
17
Part #16155-KRP-981
Gasket,float cham (Ref #18)
18
Part #16163-KRP-981
Держатель жиклера (Ref #19)
19
Part #16165-KRP-981
Jet ,slow.#35 (Ref #20)
20
Part #16180-KPP-901
CAP,HOLDER (Ref #21)
21
Part #16190-GEE-003
Болт (Ref #22)
22
Part #93500-040-080-H
Болт (Ref #23)
23
Part #93500-040-120-H
Болт (Ref #24)
24
Part #93500-050-100-H
Болт (Ref #24)
24
Part #93500-050-100-H
Болт (Ref #24)
24
Part #93500-050-100-H
Болт (Ref #24)
24
Part #93500-050-100-H
Screw-washer (Ref #25)
25
Part #93892-040-080-8
Screw-washer (Ref #26)
26
Part #93892-050-120-8
Clip, tube (b8) (Ref #27)
27
Part #9500202089
Tube,v,4.5x8x270 (Ref #28)
28
Part #95003-090-273-1
Jet,#85 (Ref #29)
29
Part #99101-KRP-0850
