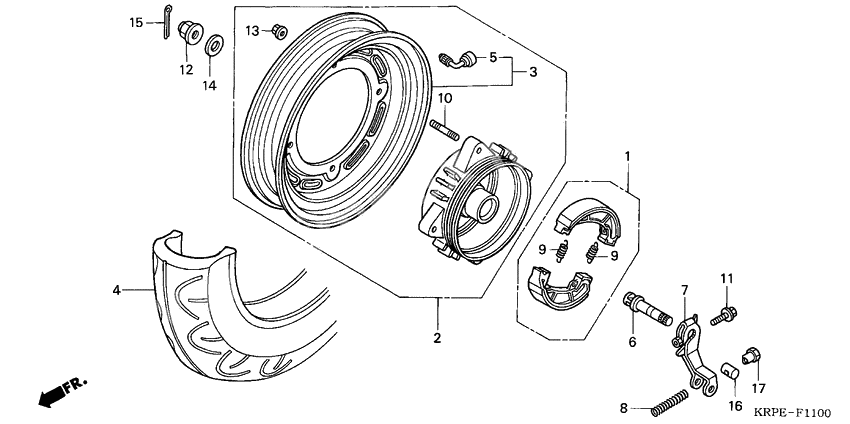

Rear wheel complete assy
Rear wheel complete assy
Отсутствующе (Ref #1)
1
Part #06430-KPL-840
Shoe set, brake (Ref #1)
1
Part #06430-GBJ-K20
Wheel sub assy,rr (Ref #2)
2
Part #42650-KRP-980
Rim set (Ref #3)
3
Part #42660-KRP-980
Tire(irc) (Ref #4)
4
Part #42711-KRP-982
Tire,(dun) (Ref #4)
4
Part #42711-KRP-981
Valve,rim (Ref #5)
5
Part #42753-KRP-980
Cam,rear brake (Ref #6)
6
Part #43141-KPL-900
Arm,rear brake (Ref #7)
7
Part #43410-KRP-980
Spg,rr brk arm (Ref #8)
8
Part #43472-KPL-900
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Spring, brake shoe (Ref #9)
9
Part #43151-329-000
Bolt,stud,8x22 (Ref #10)
10
Part #90110-KG8-900
Bolt,flange,6x30 (Ref #11)
11
Part #90112-KPL-900
Nut,hex spl 16mm (Ref #12)
12
Part #90305-KPL-900
Nut,flg spl 8mm (Ref #13)
13
Part #90309-KPL-900
Washer,16mm (Ref #14)
14
Part #90501-KPL-900
PIN (Ref #15)
15
Part #94201-30220
Joint b, brake arm (Ref #16)
16
Part #9501532001
Nut b, brake rod adjusting (Ref #17)
17
Part #9501542000
