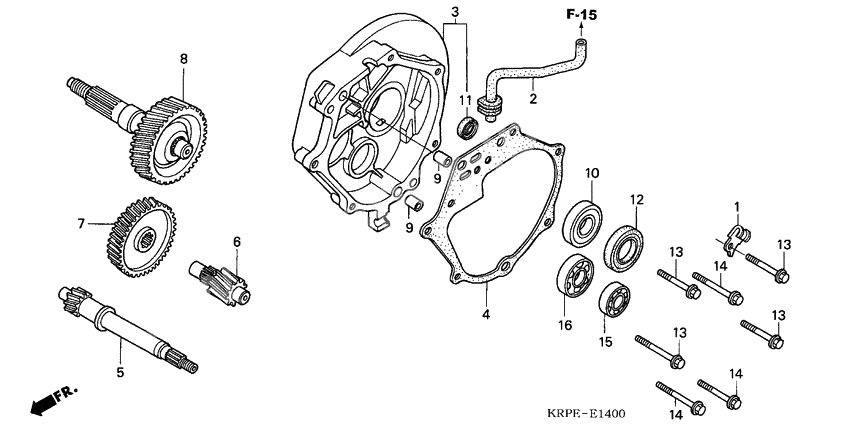

Трансмиссия
Трансмиссия
Clamper (Ref #1)
1
Part #11209-KRP-980
TUBE (Ref #2)
2
Part #11220-GCC-000
Case comp,mission (Ref #3)
3
Part #21200-KPL-900
Gasket,mission ca (Ref #4)
4
Part #21395-KRP-980
Торсионный вал (Ref #5)
5
Part #23411-KPL-900
SHAFT,COUNTER (Ref #6)
6
Part #23421-GCC-000
Gear,counter (Ref #7)
7
Part #23422-GCC-000
Gear comp,final (Ref #8)
8
Part #23430-KPL-900
Pin,dowel special (Ref #9)
9
Part #90701-KPL-900
Pin,dowel special (Ref #9)
9
Part #90701-KPL-900
Pin,dowel special (Ref #9)
9
Part #90701-KPL-900
Pin,dowel special (Ref #9)
9
Part #90701-KPL-900
Bearing (6004uu) (Ref #10)
10
Part #91009-GE0-004
Oil seal,14x20x3. (Ref #11)
11
Part #91203-KPL-901
Oil seal,27x42x7 (Ref #12)
12
Part #91255-KPL-901
Bearing, radial ball, 6201 (Ref #15)
15
Part #96100-6201000
Bearing, radial ball, 6301 (Ref #16)
16
Part #96100-630-100-0
