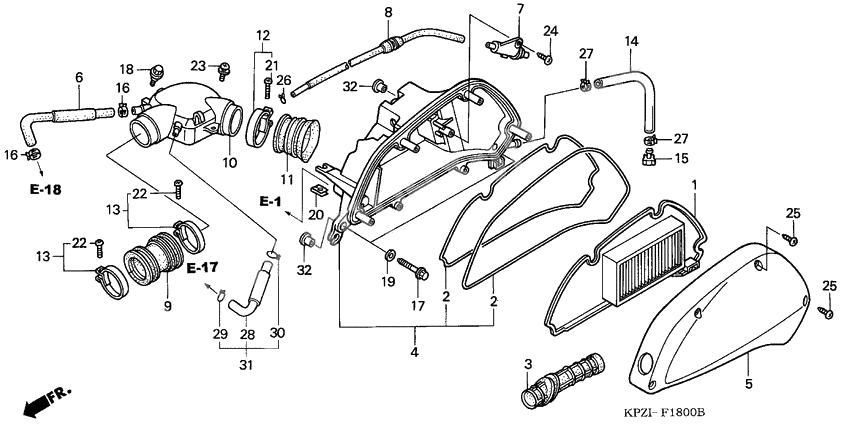

Воздушный фильтр
Воздушный фильтр
Element comp,air/ (Ref #1)
1
Part #17210-KGF-901
Seal, air cleaner (Ref #2)
2
Part #17212-KGF-900
Seal, air cleaner (Ref #2)
2
Part #17212-KGF-900
Seal, air cleaner (Ref #2)
2
Part #17212-KGF-900
Seal, air cleaner (Ref #2)
2
Part #17212-KGF-900
Duct,air/c (Ref #3)
3
Part #17213-KGF-900
Case sub assy,air (Ref #4)
4
Part #17225-KGF-900
Cover,air/c (Ref #5)
5
Part #17231-KGF-900
TUBE (Ref #6)
6
Part #17235-KGF-900
Valve,a/f control (Ref #7)
7
Part #17250-GEC-003
Tube comp,air lea (Ref #8)
8
Part #17251-KGF-900
Tube,air/c conn. (Ref #9)
9
Part #17253-KGF-900
Chamber,air/c (Ref #10)
10
Part #17254-KGF-901
Joint,air/c (Ref #11)
11
Part #17255-KGF-900
Band,air/c.conn.t (Ref #12)
12
Part #17255-KPZ-900
Band 58,air/cconn (Ref #13)
13
Part #17257-KPZ-900
Band 58,air/cconn (Ref #13)
13
Part #17257-KPZ-900
Band 58,air/cconn (Ref #13)
13
Part #17257-KPZ-900
Band 58,air/cconn (Ref #13)
13
Part #17257-KPZ-900
Трубка дренажная (Ref #14)
14
Part #17261-KGF-900
Plug, breather tube (Ref #15)
15
Part #17370-419-700
CLIP (Ref #16)
16
Part #17724-102-700
CLIP (Ref #16)
16
Part #17724-102-700
CLIP (Ref #16)
16
Part #17724-102-700
CLIP (Ref #16)
16
Part #17724-102-700
Bolt (6x30) (Ref #17)
17
Part #90104-GAV-701
BOLT (Ref #18)
18
Part #90111-187-000
Washer b, handle holder setting (Ref #19)
19
Part #90525-030-000
Nut, clip (5mm) (Ref #20)
20
Part #90677-GR1-003
Screw, pan, 4x20 (Ref #21)
21
Part #93500-040200A
Screw, pan, 4x25 (Ref #22)
22
Part #93500-040-250-A
Screw, pan, 4x25 (Ref #22)
22
Part #93500-040-250-A
Screw, pan, 4x25 (Ref #22)
22
Part #93500-040-250-A
Screw, pan, 4x25 (Ref #22)
22
Part #93500-040-250-A
Screw-washer (Ref #23)
23
Part #93894-050-120-7
Болт (Ref #24)
24
Part #93903-25480
Screw, tap (5x25) (Ref #25)
25
Part #93903255J0
Screw, tap (5x25) (Ref #25)
25
Part #93903255J0
Screw, tap (5x25) (Ref #25)
25
Part #93903255J0
Screw, tap (5x25) (Ref #25)
25
Part #93903255J0
CLIP (Ref #26)
26
Part #95002-02070
Clip, tube (d12) (Ref #27)
27
Part #95002-4105000
Clip, tube (d12) (Ref #27)
27
Part #95002-4105000
Clip, tube (d12) (Ref #27)
27
Part #95002-4105000
Clip, tube (d12) (Ref #27)
27
Part #95002-4105000
Tube,sub air/c (Ref #28)
28
Part #17274-KGF-910
Clip, tube (b14) (Ref #29)
29
Part #90651-KM9-000
Clip, tube (Ref #30)
30
Part #90652-MB1-000
Tube comp,air ope (Ref #31)
31
Part #17270-KGF-910
Collar, air cleaner setting (Ref #32)
32
Part #17208-GR1-010
Collar, air cleaner setting (Ref #32)
32
Part #17208-GR1-010
Collar, air cleaner setting (Ref #32)
32
Part #17208-GR1-010
Collar, air cleaner setting (Ref #32)
32
Part #17208-GR1-010
