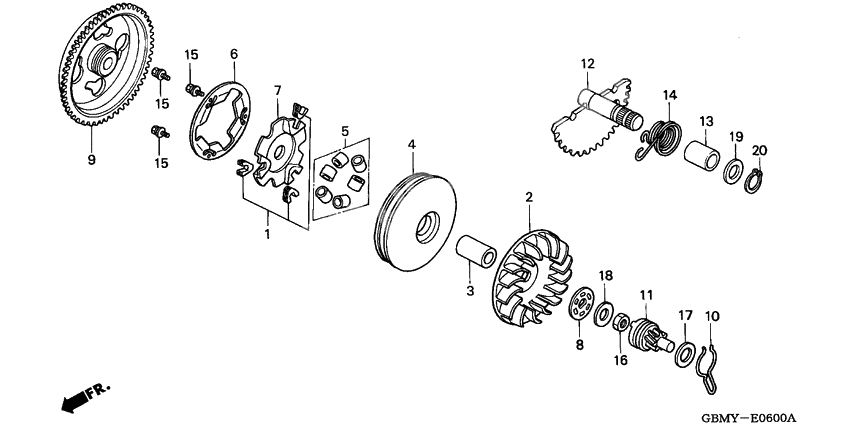

Drive face/ kick starter spindle
Drive face/ kick starter spindle
Piece set, slide (Ref #1)
1
Part #22011-GW0-000
Face,drive (Ref #2)
2
Part #22102-GW2-010
Boss,drive face (Ref #3)
3
Part #22105-GR1-750
Face comp,movable (Ref #4)
4
Part #22110-GAV-700
Roller set, weight (Ref #5)
5
Part #22123-GG2-750
Plate,ramp (Ref #7)
7
Part #22131-GR1-750
Ratchet,starter (Ref #8)
8
Part #28211-GM9-000
Gear comp,starter (Ref #9)
9
Part #28220-GBM-850
Spg,friction,star (Ref #10)
10
Part #28223-GM9-010
Gear comp.,kick d (Ref #11)
11
Part #28230-GN2-600
Spindle comp,kick (Ref #12)
12
Part #28250-GBY-900
Bush, kick spindle (Ref #13)
13
Part #28253-GBL-003
Spring kick retur (Ref #14)
14
Part #28281-GN2-602
Nut, hex. (10mm) (Ref #16)
16
Part #90308-GAH-000
Washer, thrust, 10mm (Ref #17)
17
Part #90412-329-000
Шайба (Ref #18)
18
Part #90426-GW0-730
Шайба (Ref #19)
19
Part #90451-GBL-870
Circlip, external, 14mm (Ref #20)
20
Part #9451114000
-
1990451-GN2-600
Washer,kick spind
1Replaced by 90451-GBL-870 Доступно: Нет в наличии
