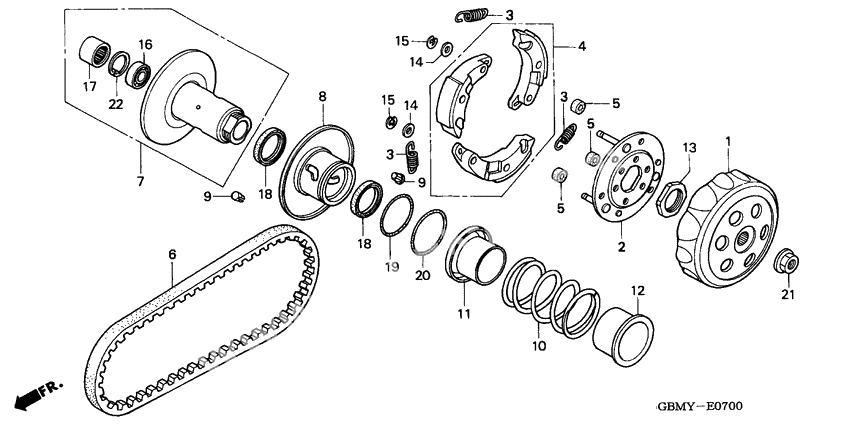

Driven face
Driven face
Outer comp.,clutc (Ref #1)
1
Part #22100-GW2-710
Пластина (Ref #2)
2
Part #22350-GAH-A00
Weight set, clutch (Ref #4)
4
Part #22535-GAK-305
BELT,DRIVE (Ref #6)
6
Part #23100-GW2-013
Face set,driven (Ref #7)
7
Part #23205-GAH-315
Face comp.,movabl (Ref #8)
8
Part #23220-GAK-901
Pin,guide (Ref #9)
9
Part #23225-GR1-750
Pin,guide (Ref #9)
9
Part #23225-GR1-750
Pin,guide (Ref #9)
9
Part #23225-GR1-750
Pin,guide (Ref #9)
9
Part #23225-GR1-750
Spg.driven face (Ref #10)
10
Part #23233-GM0-000
Collar,seal (Ref #11)
11
Part #23237-GR1-880
Collar,spg (Ref #12)
12
Part #23238-GS7-010
Nut, special (28mm) (Ref #13)
13
Part #90202-187-000
Washer, thrust (6mm) (Ref #14)
14
Part #90442-044-000
Washer, thrust (6mm) (Ref #14)
14
Part #90442-044-000
Washer, thrust (6mm) (Ref #14)
14
Part #90442-044-000
Washer, thrust (6mm) (Ref #14)
14
Part #90442-044-000
Circlip (Ref #15)
15
Part #90454-GB2-000
Circlip (Ref #15)
15
Part #90454-GB2-000
Circlip (Ref #15)
15
Part #90454-GB2-000
Circlip (Ref #15)
15
Part #90454-GB2-000
Brg,ball 6901u (Ref #16)
16
Part #91001-GCM-901
Needle bgr (Ref #17)
17
Part #91103-GR1-003
Oil seal 34x39x3 (Ref #18)
18
Part #91211-GK8-013
Oil seal 34x39x3 (Ref #18)
18
Part #91211-GK8-013
Oil seal 34x39x3 (Ref #18)
18
Part #91211-GK8-013
Oil seal 34x39x3 (Ref #18)
18
Part #91211-GK8-013
O-ring,36x1.5 (Ref #19)
19
Part #91301-GCG-931
O-ring,39.8x2.2 (Ref #20)
20
Part #91302-GCG-931
Гайка (Ref #21)
21
Part #94050-10000
Circlip (24mm) (Ref #22)
22
Part #9452024000
