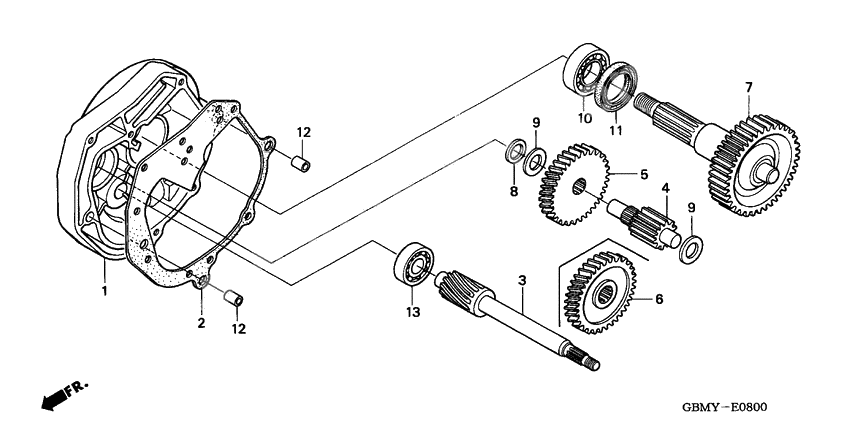

Трансмиссия
Трансмиссия
Case comp,mission (Ref #1)
1
Part #21200-GAV-702
Gasket,mission ca (Ref #2)
2
Part #21395-KEE-631
Торсионный вал (Ref #3)
3
Part #23411-GAV-700
SHAFT,COUNTER (Ref #4)
4
Part #23421-GAV-700
Gear,counter (Ref #5)
5
Part #23422-GAV-700
Gear comp,final (Ref #7)
7
Part #23430-GCG-930
Washer side 14mm (Ref #8)
8
Part #90429-GN2-003
Шайба (Ref #9)
9
Part #90451-121-000
Шайба (Ref #9)
9
Part #90451-121-000
Шайба (Ref #9)
9
Part #90451-121-000
Шайба (Ref #9)
9
Part #90451-121-000
Bearing (6004uu) (Ref #10)
10
Part #91009-GE0-004
Bearing (6004uu) (Ref #10)
10
Part #91009-GE0-003
Oil seal (27x42x7) (Ref #11)
11
Part #91255-GE0-003
Dowel pin (Ref #12)
12
Part #94301-10120
Dowel pin (Ref #12)
12
Part #94301-10120
Dowel pin (Ref #12)
12
Part #94301-10120
Dowel pin (Ref #12)
12
Part #94301-10120
Bearing (6201) (Ref #13)
13
Part #96100-6201300
