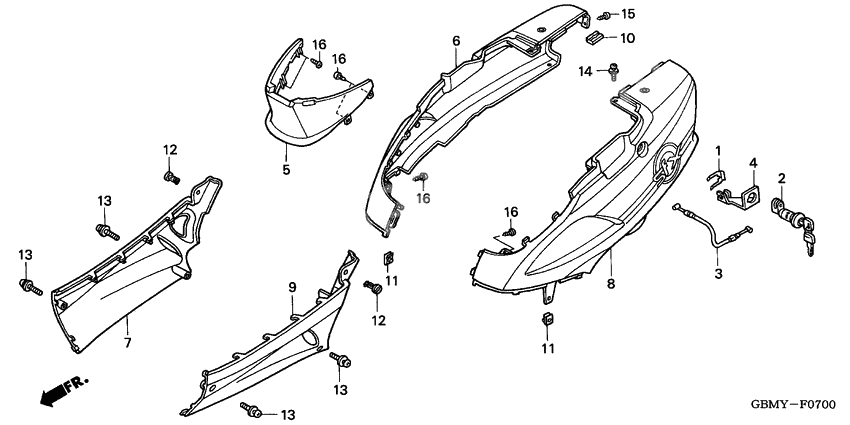

Body cover/ luggage carrier
Body cover/ luggage carrier
Пружина (Ref #1)
1
Part #75581-GN8-920
Key, seat lock (Ref #2)
2
Part #77239-KAB-000
Кабель замка (Ref #3)
3
Part #77240-GY1-900
Stay seat lock cable (Ref #4)
4
Part #77242-GBM-750
Cover center nh1 (Ref #5)
5
Part #80151-GBM-750ZA
Set illust,r*nh1* (Ref #6)
6
Part #83450-GBM-F70ZA
Set illust,*p32m* (Ref #6)
6
Part #83450-GBM-F70ZC
Set illus*nh146m* (Ref #6)
6
Part #83450-GBM-F70ZB
Cover r lower nh1 (Ref #7)
7
Part #83520-GBM-750ZK
Cover r lower p33r (Ref #7)
7
Part #83520-GBM-750ZN
Cover r lower nh201r (Ref #7)
7
Part #83520-GBM-750ZL
Set illust,*p32m* (Ref #8)
8
Part #83550-GBM-F70ZC
Set illus*nh146m* (Ref #8)
8
Part #83550-GBM-F70ZB
Set illust,l*nh1* (Ref #8)
8
Part #83550-GBM-F70ZA
Cover l lower nh201r (Ref #9)
9
Part #83620-GBM-750ZL
Cover l lower p33r (Ref #9)
9
Part #83620-GBM-750ZN
Cover l lower nh1 (Ref #9)
9
Part #83620-GBM-750ZK
Spring, cowl setting (Ref #10)
10
Part #90655-GT4-000
Nut, clip (5mm) (Ref #11)
11
Part #90677-GR1-003
Nut, clip (5mm) (Ref #11)
11
Part #90677-GR1-003
Nut, clip (5mm) (Ref #11)
11
Part #90677-GR1-003
Nut, clip (5mm) (Ref #11)
11
Part #90677-GR1-003
Клипса крепления бампера (Ref #12)
12
Part #90683-GAZ-003
Клипса крепления бампера (Ref #12)
12
Part #90683-GAZ-003
Клипса крепления бампера (Ref #12)
12
Part #90683-GAZ-003
Клипса крепления бампера (Ref #12)
12
Part #90683-GAZ-003
Screw-washer (Ref #14)
14
Part #93894-050-120-0
Болт (Ref #15)
15
Part #93903-24480
