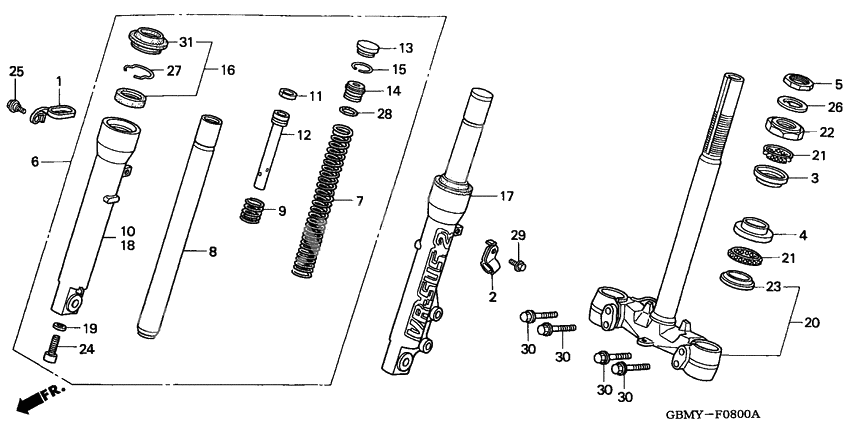

Front fork/steering stem
Front fork/steering stem
Guide speedometer ca (Ref #1)
1
Part #44832-GBL-750
Clamper,fr brake (Ref #2)
2
Part #45156-GBM-W00
Race, steering upper ball (Ref #3)
3
Part #50301-GM0-000
Race, steering under ball (Ref #4)
4
Part #50305-GE8-680
Nut, steering stem lock (Ref #5)
5
Part #50306-196-010
Fork assy r fr nh1 (Ref #6)
6
Part #51400-GBM-W00
SPRING,FR FORK (Ref #7)
7
Part #51401-GBM-W00
Pipe comp,fr fork (Ref #8)
8
Part #51410-GBM-W00
SPRING,REBOUND (Ref #9)
9
Part #51412-GBM-W00
Case,r fr bottom (Ref #10)
10
Part #51421-GBM-W00
RING,PISTON (Ref #11)
11
Part #51437-GBM-W00
Pipe seat fork (Ref #12)
12
Part #51440-GBM-W00
Cap,fork pipe (Ref #13)
13
Part #51449-GBM-W00
Seat,spring upper (Ref #14)
14
Part #51454-GBM-W00
Кольцо стопорное (Ref #15)
15
Part #51456-GBM-W00
Seal set fr. fork (Ref #16)
16
Part #51490-GBG-850
Fork assy l fr nh1 (Ref #17)
17
Part #51500-GBM-W00
Case,l fr bottom (Ref #18)
18
Part #51521-GBM-W00
Washer,special,10 (Ref #19)
19
Part #52442-GBM-W00
Stem set steering (Ref #20)
20
Part #53210-GBM-750
Ball assy., steering steel (Ref #21)
21
Part #53210-GR1-751
Ball assy., steering steel (Ref #21)
21
Part #53210-GR1-751
Ball assy., steering steel (Ref #21)
21
Part #53210-GR1-751
Ball assy., steering steel (Ref #21)
21
Part #53210-GR1-751
Race, steering top cone (Ref #22)
22
Part #53211-GC8-003
Race, steering bottom cone (mitsuboshi) (Ref #23)
23
Part #53212-147-003
Bolt socket fork fr. (Ref #24)
24
Part #90116-GBM-W00
Bolt, special, 6mm (Ref #25)
25
Part #90122-752-000
Washer, lock nut (Ref #26)
26
Part #90506-KCW-850
Ring,oil seal sto (Ref #27)
27
Part #90601-KCS-690
O RING (Ref #28)
28
Part #91356-GBM-W00
BOLT (Ref #29)
29
Part #95701-060-120-0
Уплотнение (Ref #31)
31
Part #91254-GBG-850
