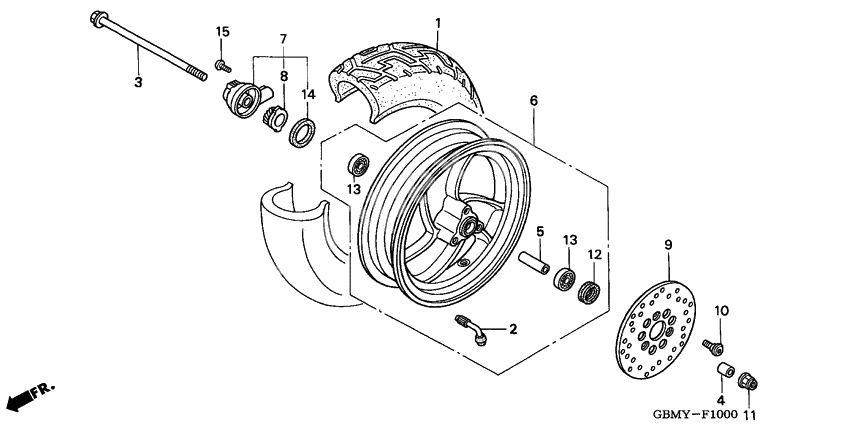

Transom + tube
Transom + tube
Tire(pirelli) (Ref #1)
1
Part #42711-GBM-W04
Tire(dun) (Ref #1)
1
Part #42711-GBM-W03
Valve rim rr (Ref #2)
2
Part #42753-GAV-701
Axle fr wheel (Ref #3)
3
Part #44301-GBM-750
Collar,fr.wheel s (Ref #4)
4
Part #44311-GZ0-000
Collar fr distance (Ref #5)
5
Part #44620-GBM-750
Wheel set,fr*nh1* (Ref #6)
6
Part #44650-GBM-W00ZD
Box assy.,sp*nh1* (Ref #7)
7
Part #44800-GW0-751ZA
GEAR,SPEEDOMETER (Ref #8)
8
Part #44806-GW0-751
Disk l fr brake (Ref #9)
9
Part #45351-GBM-750
Bolt, fr. (8x24) (Ref #10)
10
Part #90105-KR3-000
Nut, u, 10mm (Ref #11)
11
Part #90304-GE8-003
Oil seal,19x30.5x (Ref #12)
12
Part #91251-GT8-600
Oil seal (19x30.5x7) (Ref #12)
12
Part #90754-147-003
Bearing,radial ba (Ref #13)
13
Part #91009-GT8-601
Bearing,radial ba (Ref #13)
13
Part #91009-GT8-601
Bearing,radial ba (Ref #13)
13
Part #91009-GT8-601
Bearing,radial ba (Ref #13)
13
Part #91009-GT8-601
Oil seal (34x42x5) (Ref #14)
14
Part #91252-GF0-004
Болт (Ref #15)
15
Part #93500-040-060-A
