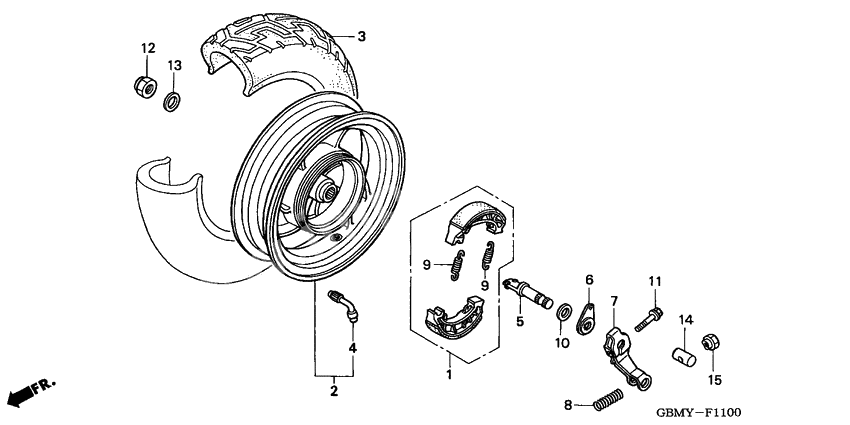

Rear wheel complete assy
Rear wheel complete assy
Shoe kit, brake (Ref #1)
1
Part #06450-178-932
Wheel set,re*nh1* (Ref #2)
2
Part #42650-GBM-W00ZD
Tire(pirelli) (Ref #3)
3
Part #42711-GBM-W04
Tire(dun) (Ref #3)
3
Part #42711-GBM-W03
Valve rim rr (Ref #4)
4
Part #42753-GAV-701
Cam,rr.brake (Ref #5)
5
Part #43141-KJ9-750
Indicator,rr.brak (Ref #6)
6
Part #43145-KJ9-750
Arm,rear brake (Ref #7)
7
Part #43410-GAV-700
Spring, rr. (Ref #8)
8
Part #43472-KG8-000
Spring, brake shoe (Ref #9)
9
Part #45133-028-000
Spring, brake shoe (Ref #9)
9
Part #45133-028-000
Spring, brake shoe (Ref #9)
9
Part #45133-028-000
Spring, brake shoe (Ref #9)
9
Part #45133-028-000
Dust seal, brake cam (Ref #10)
10
Part #45134-250-000
Болт (Ref #11)
11
Part #90112-KV8-920
Nut, u (16mm) (Ref #12)
12
Part #90305-GW2-711
Шайба (Ref #13)
13
Part #90501-KBN-900
Joint b, brake arm (Ref #14)
14
Part #9501532001
Nut b, brake rod adjusting (Ref #15)
15
Part #9501542000
