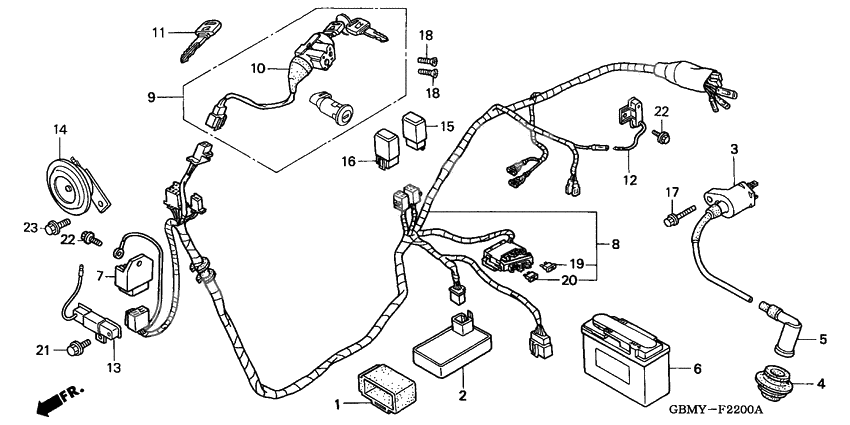

Wire harness/ ignition coil/battery
Wire harness/ ignition coil/battery
CUSHION (Ref #1)
1
Part #30401-KK6-740
Unit comp,cdi (Ref #2)
2
Part #30410-GBM-700
Coil comp,ign (Ref #3)
3
Part #30510-GBM-850
Seal,hightention (Ref #4)
4
Part #30605-GW0-000
Cap (assy),noise (Ref #5)
5
Part #30700-GR1-010
Battery ytr4a-bs (Ref #6)
6
Part #31500-181-882
Rectifier, regulator (Ref #7)
7
Part #31600-GBL-871
Harness wire (Ref #8)
8
Part #32100-GBM-E00
Key set (Ref #9)
9
Part #35010-GBM-900
Switch assy.,comb (Ref #10)
10
Part #35100-GBM-900
KEY,BLANK (Ref #11)
11
Part #35121-KEE-630
Resistor comp (Ref #12)
12
Part #35400-GW0-000
Resistor comp (Ref #13)
13
Part #35401-GR1-000
Horn comp (Ref #14)
14
Part #38110-GBM-E01
Реле стартера (Ref #15)
15
Part #38501-GAM-007
Relay comp,stop (Ref #16)
16
Part #38501-GBM-850
Bolt, flange, 5x22 (Ref #17)
17
Part #90112-GK8-010
Screw,flat 6x12 (Ref #18)
18
Part #90164-KEE-630
Screw,flat 6x12 (Ref #18)
18
Part #90164-KEE-630
Screw,flat 6x12 (Ref #18)
18
Part #90164-KEE-630
Screw,flat 6x12 (Ref #18)
18
Part #90164-KEE-630
Blade fuse(mini) (Ref #19)
19
Part #91501-GHB-651
Blade fuse(mini) (Ref #20)
20
Part #91501-GHB-661
BOLT (Ref #21)
21
Part #95701-060-100-0
BOLT (Ref #22)
22
Part #95701-060-120-0
BOLT (Ref #22)
22
Part #95701-060-120-0
BOLT (Ref #22)
22
Part #95701-060-120-0
BOLT (Ref #22)
22
Part #95701-060-120-0
Bolt, flange, 8x12 (Ref #23)
23
Part #95701-0801200
