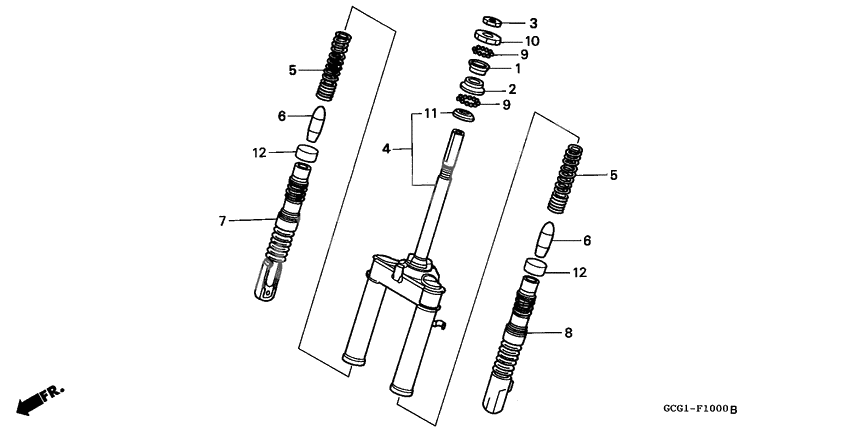

Front
Front
Race, steering upper ball (Ref #1)
1
Part #50301-GM0-000
Race, steering under ball (Ref #2)
2
Part #50305-GE8-680
Nut, steering stem lock (Ref #3)
3
Part #50306-196-010
Fork set,*nh130m* (Ref #4)
4
Part #51110-GCG-930ZB
SPRING,FR FORK (Ref #5)
5
Part #51401-GCG-931
SPRING,FR FORK (Ref #5)
5
Part #51401-GCG-931
SPRING,FR FORK (Ref #5)
5
Part #51401-GCG-931
SPRING,FR FORK (Ref #5)
5
Part #51401-GCG-931
RUBBER,STOPPER (Ref #6)
6
Part #51406-GAH-003
RUBBER,STOPPER (Ref #6)
6
Part #51406-GAH-003
RUBBER,STOPPER (Ref #6)
6
Part #51406-GAH-003
RUBBER,STOPPER (Ref #6)
6
Part #51406-GAH-003
Pipe assy,r slide (Ref #7)
7
Part #51420-GCG-931
Pipe assy,l slide (Ref #8)
8
Part #51520-GCG-931
Ball assy., steering steel (Ref #9)
9
Part #53210-GR1-751
Ball assy., steering steel (Ref #9)
9
Part #53210-GR1-751
Ball assy., steering steel (Ref #9)
9
Part #53210-GR1-751
Ball assy., steering steel (Ref #9)
9
Part #53210-GR1-751
Race, steering top cone (Ref #10)
10
Part #53211-GC8-003
Race, steering bottom cone (mitsuboshi) (Ref #11)
11
Part #53212-147-003
Piston, slide pipe (Ref #12)
12
Part #51423-GW0-731
Piston, slide pipe (Ref #12)
12
Part #51423-GW0-731
Piston, slide pipe (Ref #12)
12
Part #51423-GW0-731
Piston, slide pipe (Ref #12)
12
Part #51423-GW0-731
