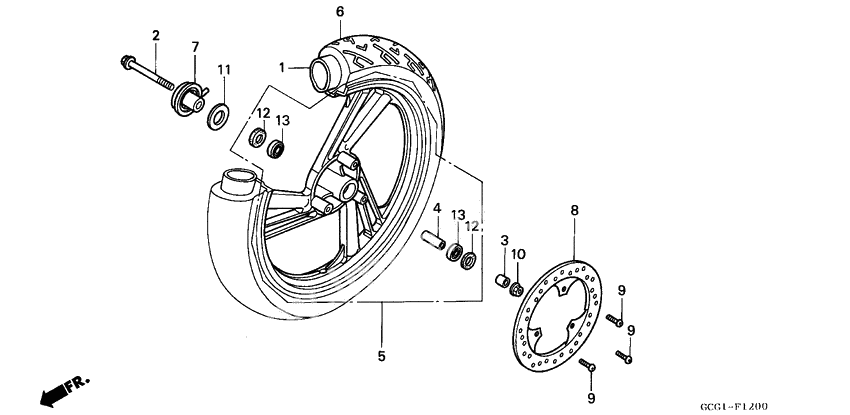

Transom + tube
Transom + tube
Tube,tire(pirelli (Ref #1)
1
Part #42712-GJ4-762
Tube(michelin) (Ref #1)
1
Part #42712-GT8-601
Axle,front wheel (Ref #2)
2
Part #44301-GCG-930
Collar,fr wheel s (Ref #3)
3
Part #44311-GCG-930
Collar,fr axle di (Ref #4)
4
Part #44620-GCG-930
Wheel set*nh130m* (Ref #5)
5
Part #44650-GCG-930ZB
Tire,fr(miche) (Ref #6)
6
Part #44711-GBY-912
Front tyre (Ref #6)
6
Part #44711-GBY-W61
TIRE,FR (Ref #6)
6
Part #44711-GCG-932
Gear box assy,spd (Ref #7)
7
Part #44800-GCG-930
Disk,l fr brake (Ref #8)
8
Part #45351-GCG-930
Nut, u, 10mm (Ref #10)
10
Part #90304-GE8-003
Dust seal,(fr whe (Ref #11)
11
Part #90754-GCG-930
Oil seal,19x30.5x (Ref #12)
12
Part #91251-GT8-600
Oil seal,19x30.5x (Ref #12)
12
Part #91251-GT8-600
Oil seal,19x30.5x (Ref #12)
12
Part #91251-GT8-600
Oil seal,19x30.5x (Ref #12)
12
Part #91251-GT8-600
Oil seal (19x30.5x7) (Ref #12)
12
Part #90754-147-003
Oil seal (19x30.5x7) (Ref #12)
12
Part #90754-147-003
Oil seal (19x30.5x7) (Ref #12)
12
Part #90754-147-003
Oil seal (19x30.5x7) (Ref #12)
12
Part #90754-147-003
Brg,ball,fr wheel (Ref #13)
13
Part #91051-GB7-851
Brg,ball,fr wheel (Ref #13)
13
Part #91051-GB7-851
Brg,ball,fr wheel (Ref #13)
13
Part #91051-GB7-851
Brg,ball,fr wheel (Ref #13)
13
Part #91051-GB7-851
Bearing (6200u) (Ref #13)
13
Part #96140-6200010
Bearing (6200u) (Ref #13)
13
Part #96140-6200010
Bearing (6200u) (Ref #13)
13
Part #96140-6200010
Bearing (6200u) (Ref #13)
13
Part #96140-6200010
