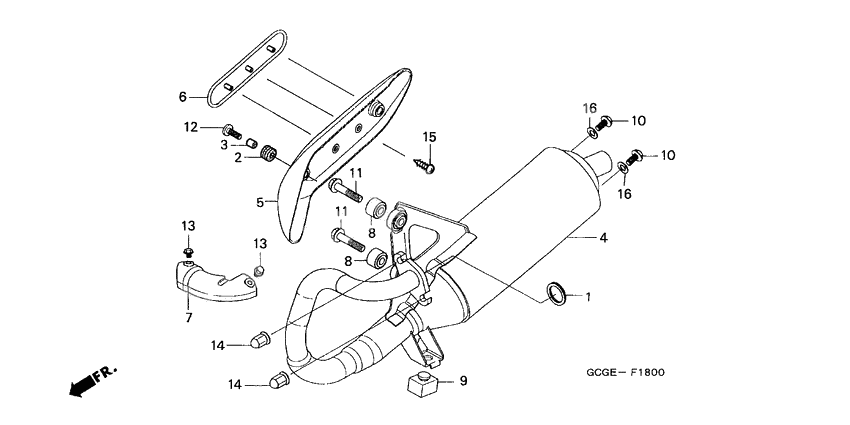

Exhaust muffler
Exhaust muffler
Gasket,ex.pipe (Ref #1)
1
Part #18291-GE2-920
RUBBER (Ref #2)
2
Part #18293-GZ5-000
Muffler comp,exh. (Ref #4)
4
Part #18300-GCG-950
Protector *nh35m* (Ref #5)
5
Part #18318-GBY-910ZA
Bush,muff.stay (Ref #8)
8
Part #18353-KCW-300
Bush,muff.stay (Ref #8)
8
Part #18353-KCW-300
Bush,muff.stay (Ref #8)
8
Part #18353-KCW-300
Bush,muff.stay (Ref #8)
8
Part #18353-KCW-300
RUBBER (Ref #9)
9
Part #50505-GR1-000
Bolt, flange, 8x35 (Ref #11)
11
Part #90101-GBL-000
Bolt, flange, 8x35 (Ref #11)
11
Part #90101-GBL-000
Bolt, flange, 8x35 (Ref #11)
11
Part #90101-GBL-000
Bolt, flange, 8x35 (Ref #11)
11
Part #90101-GBL-000
Screw,pan,5x12.5 (Ref #12)
12
Part #91508-GZ5-000
Nut, cap (6mm) (Ref #14)
14
Part #90304-438-000
Nut, cap (6mm) (Ref #14)
14
Part #90304-438-000
Nut, cap (6mm) (Ref #14)
14
Part #90304-438-000
Nut, cap (6mm) (Ref #14)
14
Part #90304-438-000
