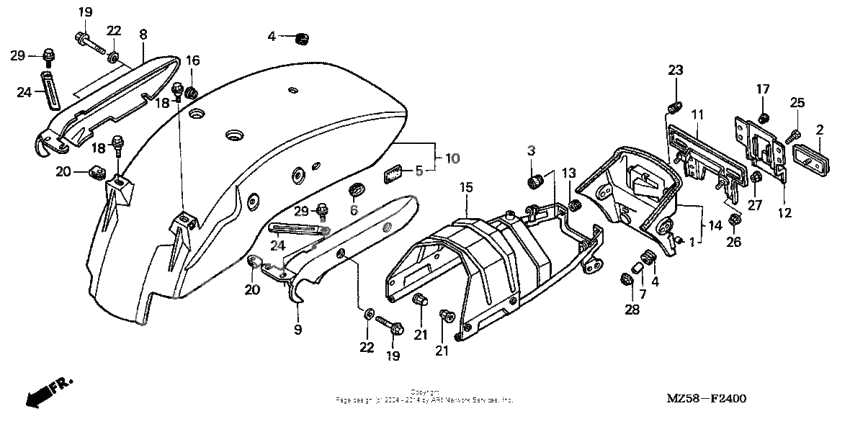

Rear fender
Rear fender
Collar, crankcase (Ref #1)
1
Part #11102-KB5-000
Reflector, reflex (stanley) (Ref #2)
2
Part #33741-MS6-921
RUBBER (Ref #3)
3
Part #37215-MA6-008
Grommet, eng hgr (Ref #4)
4
Part #50370-HA2-770
Grommet, eng hgr (Ref #4)
4
Part #50370-HA2-770
Grommet, eng hgr (Ref #4)
4
Part #50370-HA2-770
Grommet, eng hgr (Ref #4)
4
Part #50370-HA2-770
Rubber, battery (Ref #5)
5
Part #50383-GB6-300
Grommet, speaker panel (Ref #6)
6
Part #64266-MG9-770
Collar, roto-stop (Ref #7)
7
Part #75133-960-000
Grab rail, r. (Ref #8)
8
Part #77330-MZ5-000
Grab rail, l. (Ref #9)
9
Part #77340-MZ5-000
Fender b *pb215c* (Ref #10)
10
Part #80100-MZ5-000YA
Brkt, number plate (Ref #11)
11
Part #80101-MZ5-670
Stay, rr. reflector (Ref #12)
12
Part #80102-MM8-010
Grommet, engine cover (Ref #13)
13
Part #80103-GJ5-000
Fender a, rr. (Ref #14)
14
Part #80105-MZ5-000
Sub-frame, rr. (Ref #15)
15
Part #80125-MZ5-910
Уплотнение (Ref #16)
16
Part #83601-MN5-000
RUBBER (Ref #17)
17
Part #84702-MF2-670
Bolt, special (Ref #18)
18
Part #90003-GT8-600
Bolt, special (Ref #18)
18
Part #90003-GT8-600
Bolt, special (Ref #18)
18
Part #90003-GT8-600
Bolt, special (Ref #18)
18
Part #90003-GT8-600
Bolt (8x56) (Ref #19)
19
Part #90064-KK3-830
Bolt (8x56) (Ref #19)
19
Part #90064-KK3-830
Bolt (8x56) (Ref #19)
19
Part #90064-KK3-830
Bolt (8x56) (Ref #19)
19
Part #90064-KK3-830
Гайка (Ref #20)
20
Part #90305-SH3-000
Гайка (Ref #20)
20
Part #90305-SH3-000
Гайка (Ref #20)
20
Part #90305-SH3-000
Гайка (Ref #20)
20
Part #90305-SH3-000
Nut, cap, 8mm (Ref #21)
21
Part #90443-107-000
Nut, cap, 8mm (Ref #21)
21
Part #90443-107-000
Nut, cap, 8mm (Ref #21)
21
Part #90443-107-000
Nut, cap, 8mm (Ref #21)
21
Part #90443-107-000
Washer, plain, 8mm (Ref #22)
22
Part #90518-921-000
Washer, plain, 8mm (Ref #22)
22
Part #90518-921-000
Washer, plain, 8mm (Ref #22)
22
Part #90518-921-000
Washer, plain, 8mm (Ref #22)
22
Part #90518-921-000
Plug, cone type (Ref #23)
23
Part #90899-422-610
Clip, wire (Ref #24)
24
Part #91406-166-000
Clip, wire (Ref #24)
24
Part #91406-166-000
Clip, wire (Ref #24)
24
Part #91406-166-000
Clip, wire (Ref #24)
24
Part #91406-166-000
Болт (Ref #25)
25
Part #92101-06010-0G
Гайка (Ref #26)
26
Part #94002-060-700-S
Гайка (Ref #27)
27
Part #94050-05000
ナット (Ref #28)
28
Part #94050-06070
BOLT (Ref #29)
29
Part #95701-060-120-0
BOLT (Ref #29)
29
Part #95701-060-120-0
BOLT (Ref #29)
29
Part #95701-060-120-0
BOLT (Ref #29)
29
Part #95701-060-120-0
