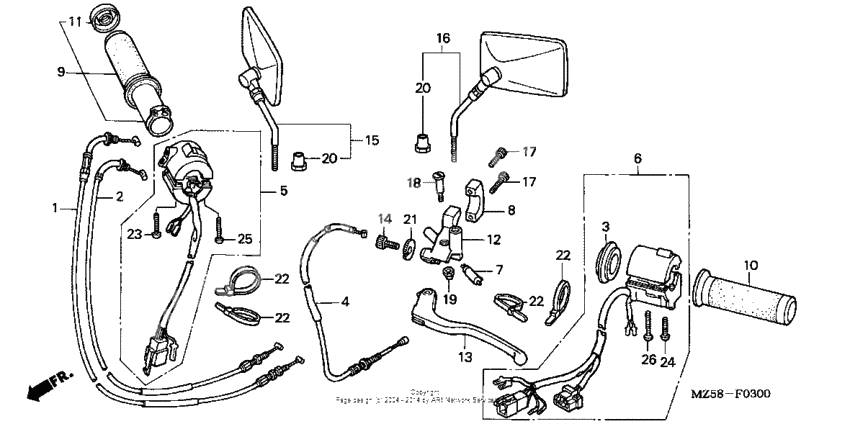

Lever + handle switch + mirror
Lever + handle switch + mirror
Cable a, throttle (Ref #1)
1
Part #17910-MZ5-910
Cable b, throttle (Ref #2)
2
Part #17920-MZ5-910
Адаптер (Ref #3)
3
Part #17962-MR1-000
Cable, clutch (Ref #4)
4
Part #22870-MZ5-770
Switch, starter stop (Ref #5)
5
Part #35013-MZ8-U12
Switch, turn signal (Ref #6)
6
Part #35020-MZ5-A80
Switch, fr. lever (Ref #7)
7
Part #35330-413-003
HOLDER (Ref #8)
8
Part #45517-MR1-671
Grip assy., r. (Ref #9)
9
Part #53145-MFR-305
Cap, grip end (Ref #10)
10
Part #53167-MM8-000
Bracket, handlebar (Ref #12)
12
Part #53172-MR1-000
Bracket, handlebar (Ref #12)
12
Part #53172-MR1-000
Bracket, handlebar (Ref #12)
12
Part #53172-MR1-000
Bracket, handlebar (Ref #12)
12
Part #53172-MR1-000
Bolt, cable adj. (Ref #13)
13
Part #53192-268-000
Mirror assy., r (Ref #15)
15
Part #88110-MZ5-003
Mirror assy., l. (Ref #16)
16
Part #88120-MZ5-003
Bolt, socket (6x22) (Ref #17)
17
Part #90101-MCL-000
Болт (Ref #18)
18
Part #90113-438-000
Nut, cap, 6mm (Ref #19)
19
Part #90201-415-000
Nut, lock (Ref #20)
20
Part #90314-375-000
Nut, lock (Ref #20)
20
Part #90314-375-000
Nut, lock (Ref #20)
20
Part #90314-375-000
Nut, lock (Ref #20)
20
Part #90314-375-000
Nut, fixing (Ref #21)
21
Part #90321-MA6-750
Болт (Ref #23)
23
Part #93500-050-200-B
Screw, pan, 5x22 (Ref #24)
24
Part #93500-050220B
Screw, pan, 5x25 (Ref #25)
25
Part #93500-050250B
Screw, pan (5x32) (Ref #26)
26
Part #93500-050320B
