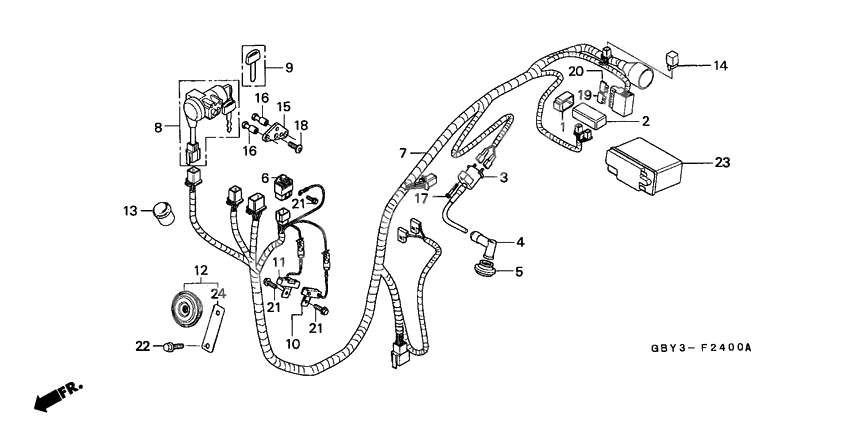

Harness wire
Harness wire
Cushion, c.d.i. unit (Ref #1)
1
Part #30401-VM0-000
Unit comp,cdi (Ref #2)
2
Part #30410-GCM-611
Coil assy., ignition (Ref #3)
3
Part #30510-GF9-405
Cap assy,noise su (Ref #4)
4
Part #30700-GS7-010
Seal,hightention (Ref #5)
5
Part #30605-GW0-000
Rectifier, regulator (Ref #6)
6
Part #31600-GBL-871
Harness wire (Ref #7)
7
Part #32100-GBY-600
Key set (Ref #8)
8
Part #35010-GBY-910
KEY,BLANK (Ref #9)
9
Part #35121-KEE-630
Resistor comp.(5w (Ref #10)
10
Part #35400-GZ4-670
Resistor comp (Ref #11)
11
Part #35401-GR1-000
Horn comp (Ref #12)
12
Part #38110-GCG-931
Relay comp.,audib (Ref #13)
13
Part #38301-GZ5-025
Реле стартера (Ref #14)
14
Part #38501-GAM-007
Stay,handle lock (Ref #15)
15
Part #50153-GBY-910
Nut special 8mm (Ref #16)
16
Part #90101-GJ3-600
Nut special 8mm (Ref #16)
16
Part #90101-GJ3-600
Nut special 8mm (Ref #16)
16
Part #90101-GJ3-600
Nut special 8mm (Ref #16)
16
Part #90101-GJ3-600
Bolt, flange, 5x22 (Ref #17)
17
Part #90112-GK8-010
Screw (6x12) (Ref #18)
18
Part #90164-028-000
Fuse (Ref #19)
19
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #20)
20
Part #98200-41500
Bolt, flange, 8x12 (Ref #22)
22
Part #95701-0801200
Battery ytr4a-bs (Ref #23)
23
Part #31500-181-882
Stay,horn (Ref #24)
24
Part #38112-GCG-931
