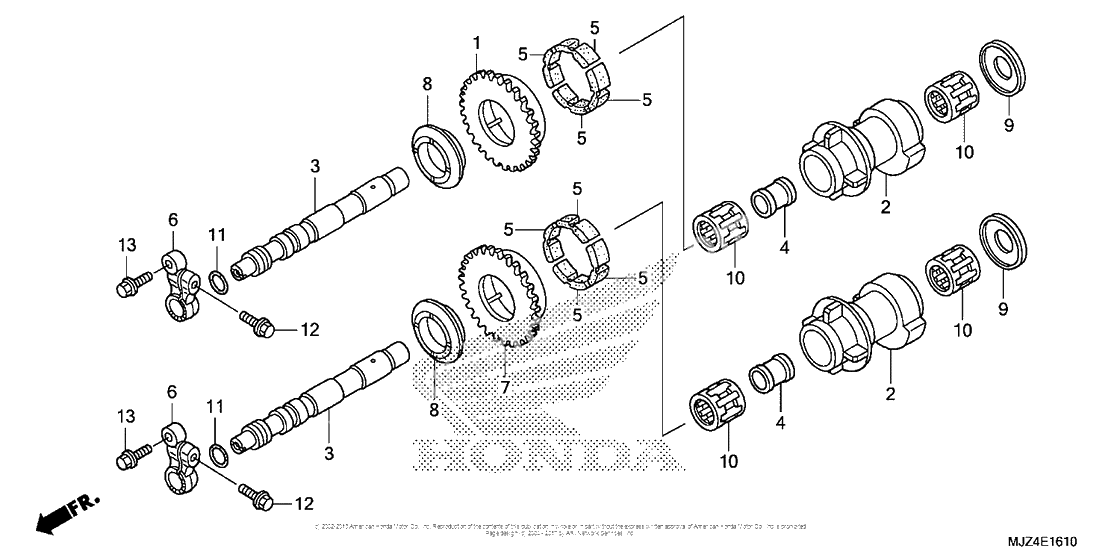

Balancer shaft
Balancer shaft
Gear, balancer (40t) (Ref #1)
1
Part #13421-MCS-000
Weight, balancer (Ref #2)
2
Part #13422-MCS-000
Shaft, balancer (Ref #3)
3
Part #13426-MCS-000
Втулка (Ref #4)
4
Part #13433-MCS-000
Rubber, damper (Ref #5)
5
Part #13435-MAT-000
HOLDER (Ref #6)
6
Part #13436-MAT-010
Gear, balancer (Ref #7)
7
Part #13521-MCS-000
Washer a (Ref #8)
8
Part #90457-MCS-000
Washer b (Ref #9)
9
Part #90458-MAT-000
Brg d (18x27x26.8) (Ref #10)
10
Part #91017-MAT-003
Brg c (18x27x26.8) (Ref #10)
10
Part #91016-MAT-003
Brg b (18x27x26.8) (Ref #10)
10
Part #91015-MAT-003
Bearing a, needle (Ref #10)
10
Part #91014-MAT-003
Brg e (18x27x26.8) (Ref #10)
10
Part #91018-MAT-003
Прокладка (Ref #11)
11
Part #91302-377-000
Bolt, flange, 6x18 (Ref #12)
12
Part #95701-0601800
BOLT (Ref #13)
13
Part #95701-080-250-0
