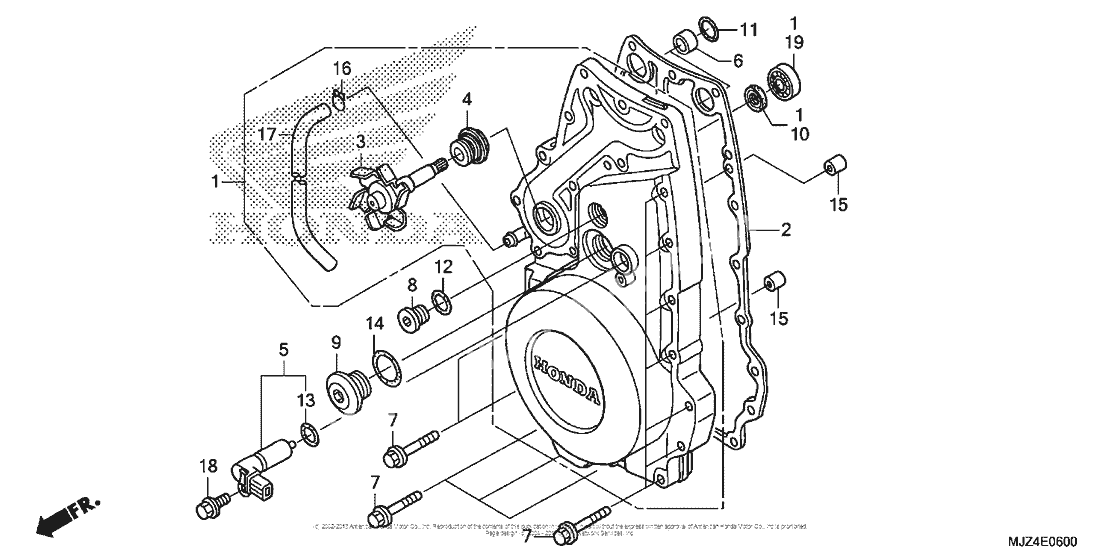

Front crankcase cover
Front crankcase cover
Cover, fr. crankcase (Ref #1)
1
Part #11340-MCS-D80
Gasket, fr. (Ref #2)
2
Part #11394-MCS-010
Крыльчатка водной помпы (Ref #3)
3
Part #19210-MCS-000
Сальник (Ref #4)
4
Part #19217-MAL-300
Generator, pulse (Ref #5)
5
Part #30300-MCS-003
Collar, fr. fork (Ref #6)
6
Part #51486-087-711
Болт (Ref #7)
7
Part #90004-GHB-710
Cap (14mm) (Ref #8)
8
Part #90084-KY2-000
Cap (30mm) (Ref #9)
9
Part #90087-KT7-000
Oil seal (12x22x5) (Ref #10)
10
Part #91201-965-000
Прокладка (Ref #11)
11
Part #91301-MCS-A11
O-ring, 13.8x2.5 (Ref #12)
12
Part #91303-377-000
Прокладка (Ref #13)
13
Part #91309-PX4-003
O-ring, 30mm (Ref #14)
14
Part #91356-425-005
Dowel pin (Ref #15)
15
Part #94301-08140
CLIP (Ref #16)
16
Part #95002-02100
Bulk hose (5.5x8000) (Ref #17)
17
Part #95005-550-0810M
Bolt, flange, 6x18 (Ref #18)
18
Part #95701-0601800
Bearing (6200) (Ref #19)
19
Part #96100-6200300
-
-
Цена: 280.00 р.
Доступно: 2
-
-
-
Цена: 270.00 р.
Доступно: 0
-
