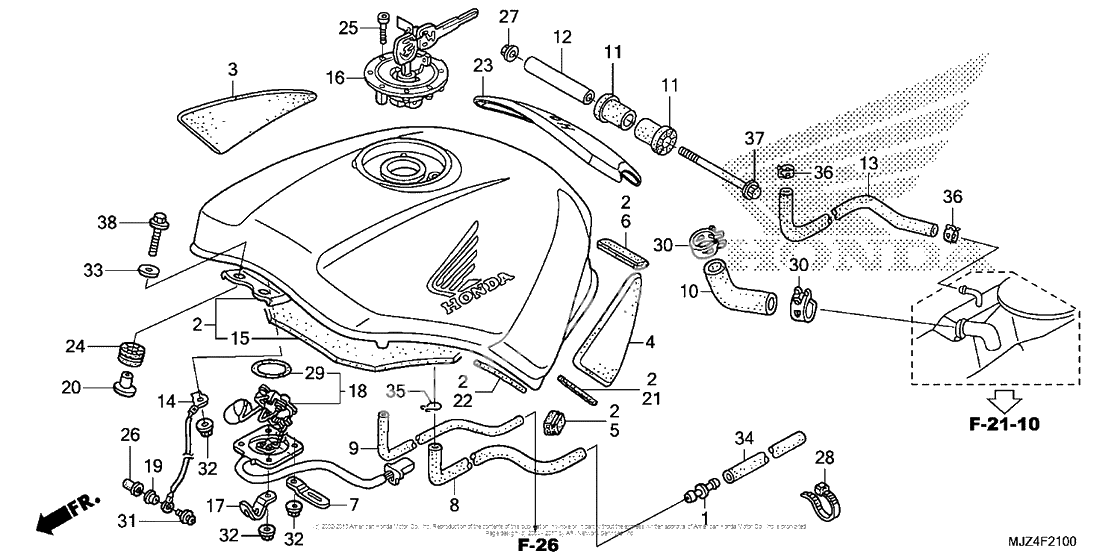

Топливный бак
Топливный бак
Joint, breather tube (Ref #1)
1
Part #17359-419-670
Tank, fuel (type4) (Ref #2)
2
Part #17500-MCS-D90ZD
Pad, r. knee grip (Ref #3)
3
Part #17506-MCS-A31
Pad, l. knee grip (Ref #4)
4
Part #17507-MCS-A31
Cushion, fuel tank (Ref #5)
5
Part #17514-MCS-G00
Trim, fuel tank (Ref #6)
6
Part #17516-HC0-000
Clamp a, tube (Ref #7)
7
Part #17522-MCW-D00
Трубка дренажная (Ref #8)
8
Part #17543-MCS-L00
Tube, breather (Ref #9)
9
Part #17544-MCS-R10
Tube, fuel joint (Ref #10)
10
Part #17545-MCS-R10
Cushion, rr (Ref #11)
11
Part #17548-MCS-G00
Collar, tank setting (Ref #12)
12
Part #17549-MCS-G00
Tube, air vent (Ref #13)
13
Part #17574-MCS-R10
Cable (Ref #14)
14
Part #17575-MCS-G01
Mat, fuel tank (Ref #15)
15
Part #17590-MCS-G00
Cap, fuel filler (Ref #16)
16
Part #17620-MAS-E03
Clip, sub cord (Ref #17)
17
Part #32901-MA1-000
Fuel unit set (Ref #18)
18
Part #37080-MCS-G00
Collar, riveting (Ref #19)
19
Part #61102-329-300
Collar, setting (Ref #20)
20
Part #61104-422-000
Mat d, heat guard (Ref #21)
21
Part #64368-MCS-G00
Mat e, heat guard (Ref #22)
22
Part #64369-MCS-G00
Tank pad (Ref #23)
23
Part #08P61-MCS-800
RUBBER (Ref #24)
24
Part #84703-425-000
Bolt, socket (4x21) (Ref #25)
25
Part #90074-MT4-000
Гайка (Ref #26)
26
Part #90111-KW3-003
Nut, u, 6mm (Ref #27)
27
Part #90301-473-003
Band, wire, 165mm (black) (Ref #28)
28
Part #90651-KV6-003
Прокладка (Ref #29)
29
Part #91305-MC7-000
Clamp, tube (d23.6) (Ref #30)
30
Part #91405-MCS-G00
Screw-washer (Ref #31)
31
Part #93891-050-200-0
Гайка (Ref #32)
32
Part #94050-06080
Шайба (Ref #33)
33
Part #94103-06700
Bulk hose (7.5x8000) (Ref #34)
34
Part #95001-750-0860M
CLIP (Ref #35)
35
Part #95002-02120
CLAMP (Ref #36)
36
Part #95002-410-000-8
BOLT (Ref #37)
37
Part #95701-061-150-8
Болт (Ref #38)
38
Part #96001-0602807
