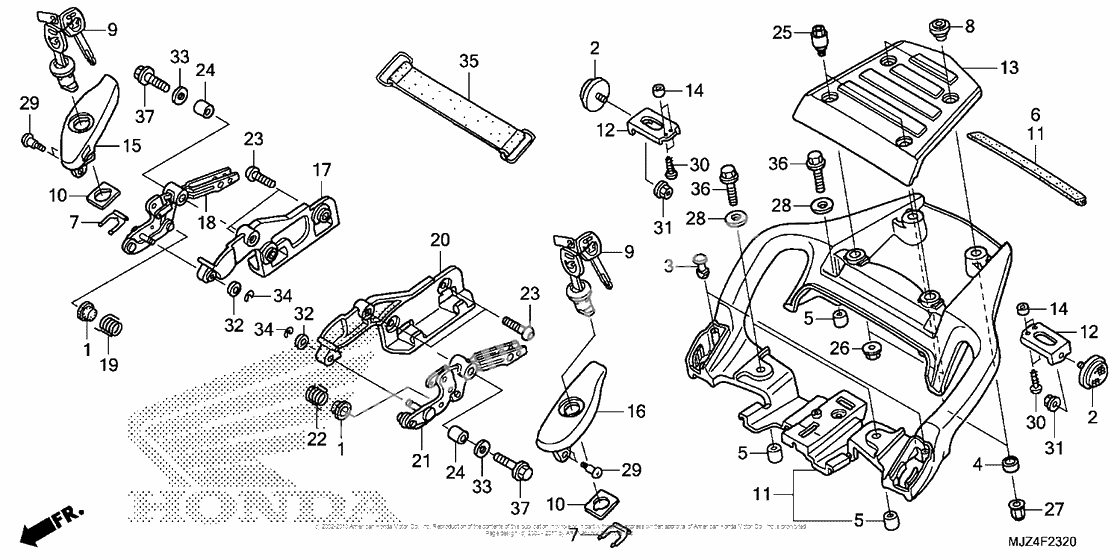

Grab rail
Grab rail
RUBBER (Ref #1)
1
Part #19113-MB1-870
Reflector, rr. reflex (Ref #2)
2
Part #33741-HB9-641
Plug, head pipe (Ref #3)
3
Part #50049-046-000
Colr, engine setting (Ref #4)
4
Part #50318-GE2-000
Collar, top bridge (Ref #5)
5
Part #53236-171-000
Воздухопровод радиатора (Ref #6)
6
Part #64121-MCS-G00
Пружина (Ref #7)
7
Part #75581-GN8-920
COLLAR (Ref #8)
8
Part #77221-MCS-A30
LOCK ASSY (Ref #9)
9
Part #77226-MCS-G00
Washer, seat lock (Ref #10)
10
Part #77236-GZ5-000
Grab rail *nh295m* (Ref #11)
11
Part #77310-MCS-770ZA
Stay, side reflector (Ref #12)
12
Part #77312-MCS-770
COVER (Ref #13)
13
Part #77313-MCS-G00
Collar, reflector (Ref #14)
14
Part #77316-MCS-770
Lever, r. *nh295m* (Ref #15)
15
Part #77340-MCS-G00ZB
Lever, l. *nh295m* (Ref #16)
16
Part #77350-MCS-G00ZB
Holder, r. saddlebag (Ref #17)
17
Part #84240-MCS-G00
Рукоятка (Ref #18)
18
Part #84260-MCS-G00
Spring, r (Ref #19)
19
Part #84273-MCS-G00
Holder, l. saddlebag (Ref #20)
20
Part #84340-MCS-G00
Рукоятка (Ref #21)
21
Part #84360-MCS-G00
Spring, l (Ref #22)
22
Part #84373-MCS-G00
Bolt, socket (8x22) (Ref #23)
23
Part #90100-GCT-J50
COLLAR (Ref #24)
24
Part #90123-MCS-G00
BOLT (Ref #25)
25
Part #90139-MCS-A30
Nut, flange (8mm) (Ref #26)
26
Part #90301-GCT-J50
Nut, flange (8mm) (Ref #27)
27
Part #90301-KM1-010
Шайба (Ref #28)
28
Part #90526-GB0-930
Screw (5mm) (Ref #29)
29
Part #91422-KFT-620
Screw-washer, 4x20 (Ref #30)
30
Part #93893-0402007
Гайка (Ref #31)
31
Part #94050-06000
Шайба (Ref #32)
32
Part #94101-06800
Шайба (Ref #33)
33
Part #94102-08800
E-ring, 4mm (Ref #34)
34
Part #9454004010
Band f, battery (Ref #35)
35
Part #9501217001
Болт (Ref #36)
36
Part #96300-0803200
Болт (Ref #37)
37
Part #96400-0803200
