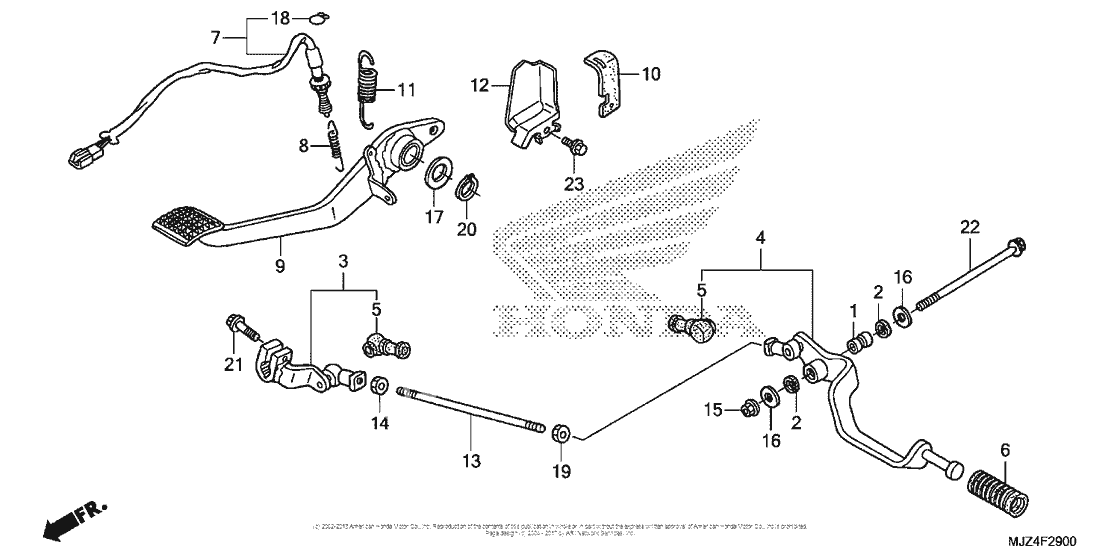

Педаль(Лапка)
Педаль(Лапка)
COLLAR (Ref #1)
1
Part #24705-MK3-000
Rubber, dust seal (Ref #2)
2
Part #24706-MK3-770
Arm, gearshift (Ref #3)
3
Part #24710-MCS-G00
Pedal, gearshift (Ref #4)
4
Part #24720-MCS-305
Пыльник (Ref #5)
5
Part #24724-MBW-D21
Rubber, change pedal (Ref #6)
6
Part #24781-KR3-770
Switch, rr. stop (Ref #7)
7
Part #35350-MCS-G01
Spring, stop switch (Ref #8)
8
Part #35357-KR3-670
Pedal, rr. brake (Ref #9)
9
Part #46500-MCS-305
Rubber, rr (Ref #10)
10
Part #46506-MCS-G00
Spring, brake pedal (Ref #11)
11
Part #46511-MBW-000
Cvr, rr. stop switch (Ref #12)
12
Part #50618-MCS-G01
Bolt, tie rod (Ref #13)
13
Part #90065-MCS-G00
Nut, governor arm fixing (left hand thread) (Ref #14)
14
Part #90201-700-000
Nut, flange (8mm) (Ref #15)
15
Part #90301-GCT-J50
Washer, 8mm (Ref #16)
16
Part #90514-921-000
Шайба (Ref #17)
17
Part #90557-230-000
Clip, switch cover (Ref #18)
18
Part #90601-KAF-003
Nut, hex. (6mm) (Ref #19)
19
Part #94002-060200S
Circlip, external, 15mm (Ref #20)
20
Part #9451115000
BOLT (Ref #21)
21
Part #95701-060-200-0
BOLT (Ref #22)
22
Part #95701-081-100-8
BOLT (Ref #23)
23
Part #96001-060-120-0
-
1490201-700-000
Nut, governor arm fixing (left hand thread)
1Доступно: Нет в наличии
