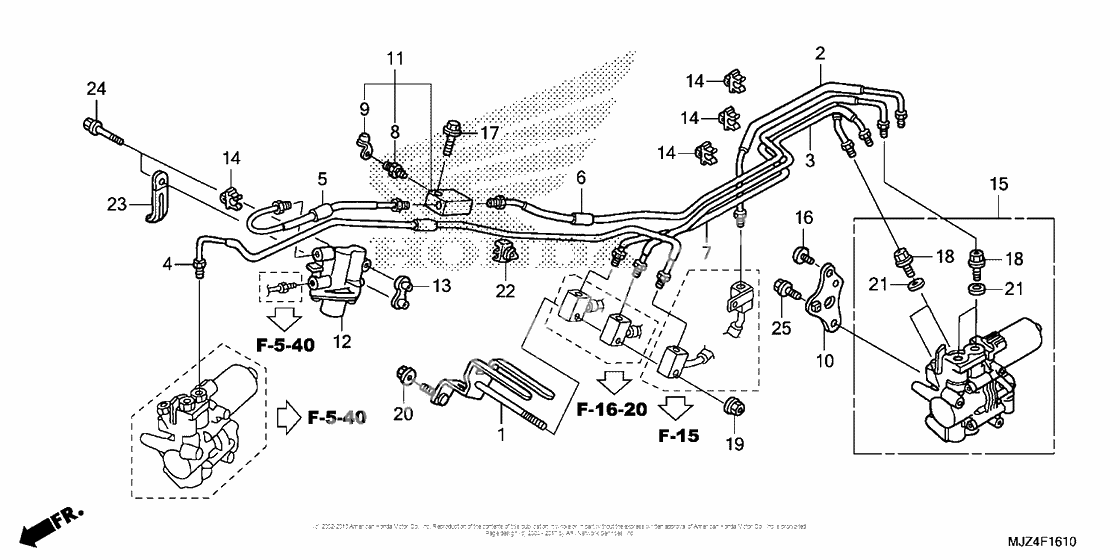

Proportioning control valve
Proportioning control valve
Stay, rr. brake hose (Ref #1)
1
Part #43157-MCS-G01
Pipe a, rr. brake (Ref #2)
2
Part #43311-MCS-G00
Pipe b, rr. brake (Ref #3)
3
Part #43312-MCS-G00
Pipe a, sub-brake (Ref #4)
4
Part #43321-MCS-G01
Pipe b (Ref #5)
5
Part #43332-MCS-G00
Pipe c (Ref #6)
6
Part #43333-MCS-G00
Pipe d (Ref #7)
7
Part #43334-MCS-G00
Болт (Ref #8)
8
Part #43352-568-003
CAP (Ref #9)
9
Part #43353-461-771
Bracket, rr. (Ref #10)
10
Part #43615-MCS-G00
Joint assy. (Ref #11)
11
Part #45160-MCS-G00
Valve assy. (Ref #12)
12
Part #46200-MCS-R01
Stay, pcv (Ref #13)
13
Part #46210-MCS-G00
Clip c, brake pipe (Ref #14)
14
Part #50304-HE0-003
Modulator assy., abs (Ref #15)
15
Part #57100-MCA-971
Screw, pan (6x12) (Ref #16)
16
Part #90106-MAV-000
Болт (Ref #17)
17
Part #90114-MCS-G00
Bolt, oil (10x10.6) (Ref #18)
18
Part #90145-MCA-971
Nut, u, 6mm (Ref #19)
19
Part #90301-473-003
Nut, flange (self-lock) (m8x1.25) (Ref #20)
20
Part #90309-428-731
Шайба (Ref #21)
21
Part #90545-300-000
Clamp, brake pipe (Ref #22)
22
Part #90651-MAT-000
Clip, wire (Ref #23)
23
Part #91406-166-000
BOLT (Ref #24)
24
Part #95801-060-500-8
BOLT (Ref #25)
25
Part #96001-060-120-0
