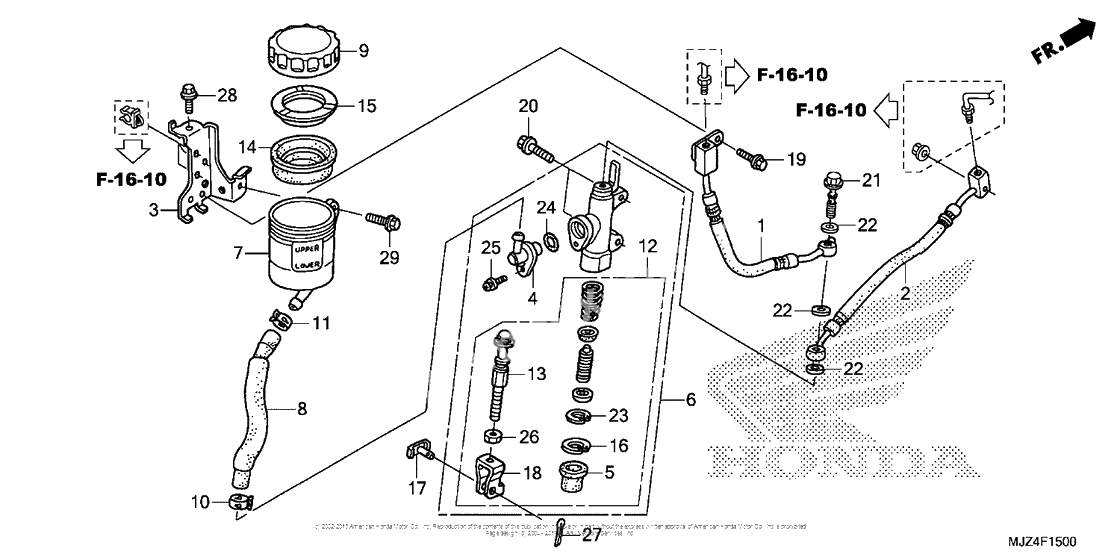

Задний тормозной цилиндр
Задний тормозной цилиндр
Hose a, rr. brake (Ref #1)
1
Part #43310-MCS-G02
Hose a, sub-brake (Ref #2)
2
Part #43320-MCS-G01
Stay, oil cap (Ref #3)
3
Part #43415-MCS-G00
Коннектор (Ref #4)
4
Part #43503-MR7-006
Ботинок (Ref #5)
5
Part #43504-MB2-006
*43510-mcs-g01 (Ref #6)
6
Part #43510-MCS-G02
Стакан (Ref #7)
7
Part #43511-MA6-006
Hose, rr. (Ref #8)
8
Part #43512-MCS-G01
Cap, oil cup (Ref #9)
9
Part #43513-MY1-006
CLAMP (Ref #10)
10
Part #43514-KS6-701
CLAMP (Ref #11)
11
Part #43514-MN9-006
*43520-mcs-g01 (Ref #12)
12
Part #43520-MCS-G02
Штанга (Ref #13)
13
Part #43530-MCS-G01
DIAPHRAGM (Ref #14)
14
Part #45520-300-000
Пластина (Ref #15)
15
Part #45521-MJ6-006
Circlip (Ref #16)
16
Part #46182-MEL-D21
Pin, brake rod (Ref #17)
17
Part #46503-MAL-000
Joint, brake rod (Ref #18)
18
Part #46504-MAL-601
Болт (Ref #20)
20
Part #90131-124-000
Bolt, oil (10x34) (Ref #21)
21
Part #90145-MR8-014
Шайба (Ref #22)
22
Part #90545-300-000
Стопорное кольцо поршня (Ref #23)
23
Part #90651-MBG-006
Прокладка (Ref #24)
24
Part #91212-422-006
Screw-washer (Ref #25)
25
Part #93893-040-120-7
Гайка (Ref #26)
26
Part #94002-080-000-S
PIN (Ref #27)
27
Part #94201-20150
BOLT (Ref #28)
28
Part #95701-060-100-8
BOLT (Ref #29)
29
Part #95701-060-140-8
