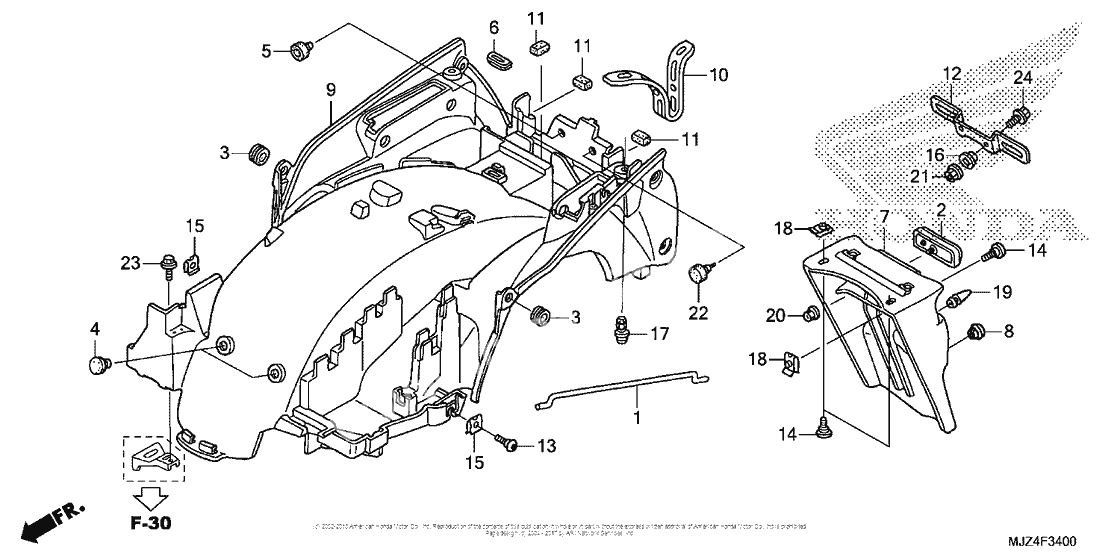

Заднее крыло
Заднее крыло
Rod, tank open (Ref #1)
1
Part #17891-MCJ-750
Reflector, reflex (stanley) (Ref #2)
2
Part #33741-MS6-921
Grommet, tube (Ref #3)
3
Part #36130-ZA8-801
Plug, useless hole (Ref #4)
4
Part #50318-041-600
Rubber, seat setting (Ref #5)
5
Part #77206-GF0-000
Grommet, tool tray (Ref #6)
6
Part #77309-KK6-000
Fender a, rr. (Ref #7)
7
Part #80100-MCS-770
Plug, rr. fender (Ref #8)
8
Part #80103-192-600
Fender b, rr. (Ref #9)
9
Part #80106-MCS-D90
Band, unit (Ref #10)
10
Part #80109-MCS-D90
Резина (Ref #11)
11
Part #83605-MCS-G00
Brkt, number plate (Ref #12)
12
Part #84700-MCS-770
Screw, special (6mm) (Ref #13)
13
Part #90106-MBL-610
Шайба (Ref #14)
14
Part #90106-MBY-000
Nut, spring, 6mm (Ref #15)
15
Part #90320-747-000
Washer, chain slider (Ref #16)
16
Part #90556-KR3-000
CLIP (Ref #17)
17
Part #90657-SB0-003
Nut, clip (5mm) (Ref #18)
18
Part #90677-KAN-961
Plug, cone (Ref #19)
19
Part #90899-KL8-000
Гайка (Ref #20)
20
Part #94050-05000
Гайка (Ref #21)
21
Part #94050-06000
Rubber b, stand stopper (Ref #22)
22
Part #9501162000
BOLT (Ref #23)
23
Part #96001-060-120-0
BOLT (Ref #24)
24
Part #96001-060-160-0
