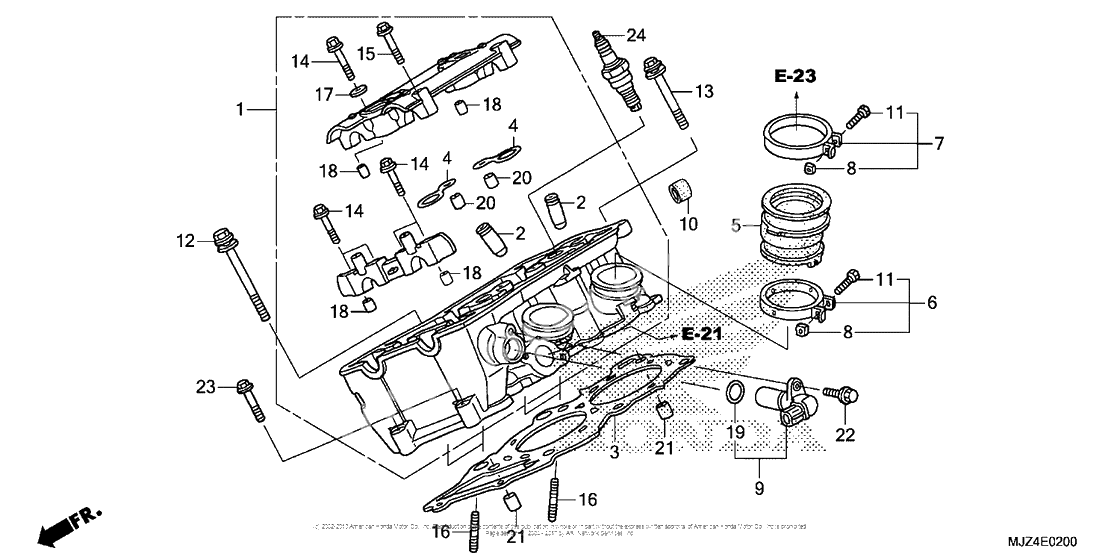

Right cylinder head
Right cylinder head
Cylinder head, r. (Ref #1)
1
Part #12010-MCS-D81
Направляющая клапана (Ref #2)
2
Part #12205-MCS-305
Gasket, r. cyl hd (Ref #3)
3
Part #12251-MCS-D81
Gasket, plug hole (Ref #4)
4
Part #12395-MCS-000
Изолятор (Ref #5)
5
Part #16211-MCS-000
Band a, insulator (Ref #6)
6
Part #16217-MCS-000
Band b, insulator (Ref #7)
7
Part #16218-MCS-000
Nut, square (5mm) (Ref #8)
8
Part #16222-MV4-300
Pick up assy. (Ref #9)
9
Part #28810-P7Z-004
TUBE (Ref #10)
10
Part #46515-MN1-670
Bolt (5x28) (Ref #11)
11
Part #90005-MAS-E00
Bolt-washer (10x105) (Ref #12)
12
Part #90007-MAT-000
Bolt-washer (10x90) (Ref #13)
13
Part #90007-MCS-000
Болт (Ref #14)
14
Part #90018-425-000
Bolt, flg (6x39.5) (Ref #15)
15
Part #90019-MA6-000
Болт заклепка (Ref #16)
16
Part #90035-MM5-000
Шайба (Ref #17)
17
Part #90463-ML7-000
Dowel pin, 8x16 (Ref #18)
18
Part #9430108160
Dowel pin (Ref #20)
20
Part #94301-10160
Dowel pin (Ref #21)
21
Part #94301-12200
BOLT (Ref #22)
22
Part #95701-060-180-7
Bolt, flange, 6x40 (Ref #23)
23
Part #95701-0604000
Spark plug (cr8eh9) (Ref #24)
24
Part #98059-58916
Spark plug (cr9eh9) (Ref #24)
24
Part #98059-59916
Spark plug (cr7eh9) (Ref #24)
24
Part #9805957916
