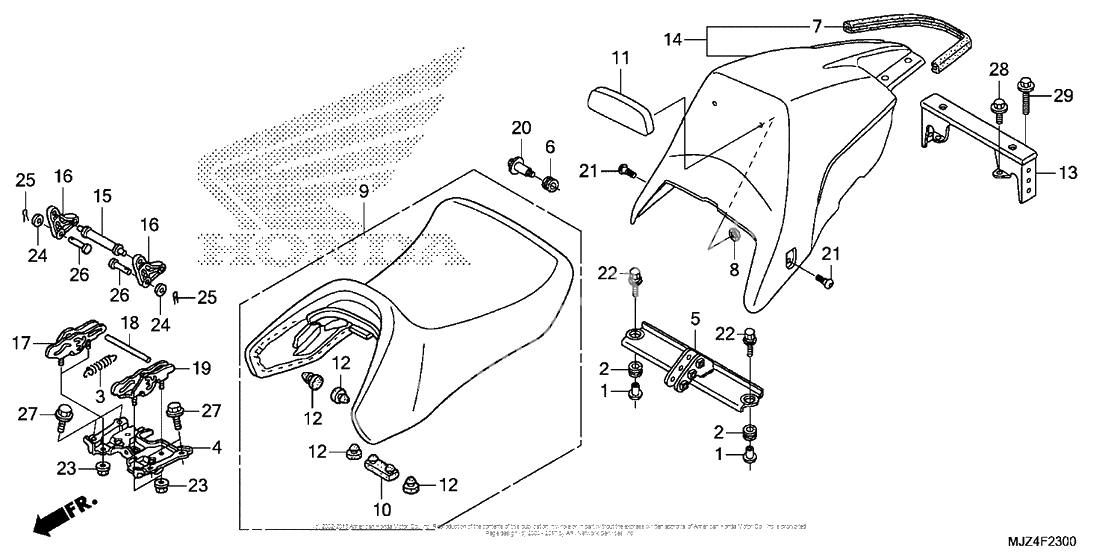

Сиденье
Сиденье
COLLAR (Ref #1)
1
Part #19343-MAL-600
Grommet, horn stay (Ref #2)
2
Part #38119-MM8-000
Пружина (Ref #3)
3
Part #46510-KJ9-000
Plate, fr. cross (Ref #4)
4
Part #50215-MCS-G00
Plate, cross (Ref #5)
5
Part #50270-MCS-A30
Rubber, battery box mounting (Ref #6)
6
Part #50329-HA7-670
Rubber, protector (Ref #7)
7
Part #64121-MCW-D00
Nut, speed (4mm) (Ref #8)
8
Part #64206-MJ0-000
Seat, main (Ref #9)
9
Part #77100-MCS-A30
Rubber, seat setting (Ref #10)
10
Part #77204-312-000
Seat assy., back (Ref #11)
11
Part #77210-KV3-830
Rubber b (Ref #12)
12
Part #77215-GC2-000
Bracket, rr. cowl (Ref #13)
13
Part #77224-MCS-A30
Cowl assy. *nh138* (Ref #14)
14
Part #77410-MCS-A30ZA
Bar, seat adjuster (Ref #15)
15
Part #77531-MCS-G00
Guide, seat adjuster (Ref #16)
16
Part #77533-MCS-G00
Bracket, r (Ref #17)
17
Part #77534-MCS-G00
PIN (Ref #18)
18
Part #77536-MCS-G00
Bracket, l (Ref #19)
19
Part #77537-MCS-G00
Bolt, special, 6mm (Ref #20)
20
Part #90101-VA9-K40
Шайба (Ref #21)
21
Part #90106-MBY-000
Bolt-washer, 6x25 (Ref #22)
22
Part #93404-0602500
Гайка (Ref #23)
23
Part #94050-06080
Шайба (Ref #24)
24
Part #94101-06800
PIN (Ref #25)
25
Part #94201-16120
Pin a, pillion step (Ref #26)
26
Part #9501581000
BOLT (Ref #27)
27
Part #95701-060-100-8
Bolt, flange, 8x12 (Ref #28)
28
Part #95701-0801200
Bolt, flange, 8x55 (Ref #29)
29
Part #95701-0805500
