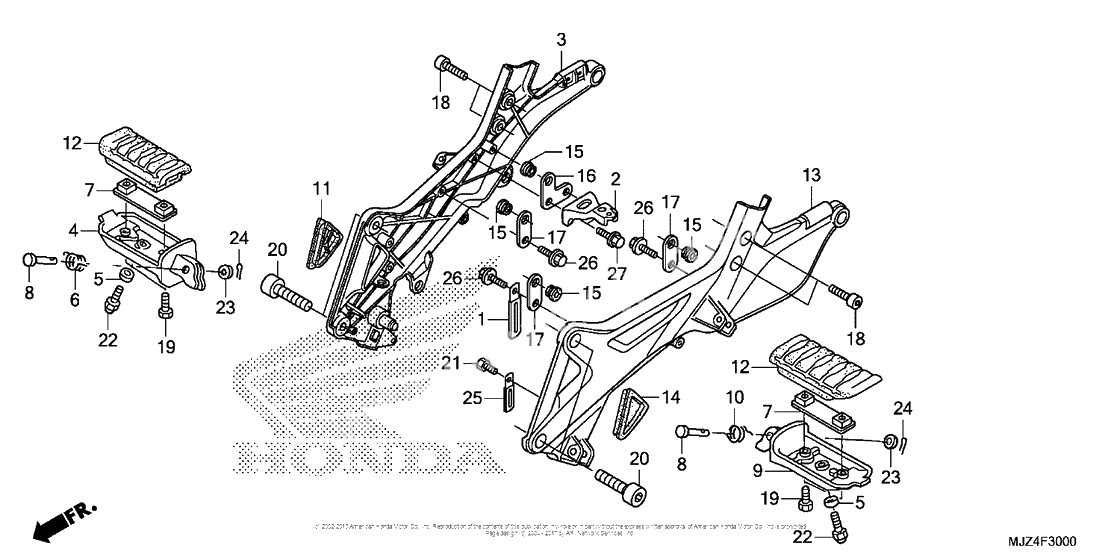

Подножки
Подножки
Clip, pulser cord (Ref #1)
1
Part #32925-958-000
Stay, battery (Ref #2)
2
Part #50325-MCS-G00
Holder, r. *nh146m* (Ref #3)
3
Part #50600-MCS-D90ZA
Arm, r. step (Ref #4)
4
Part #50612-MT3-305
Collar (5.0) (Ref #5)
5
Part #50613-MT3-000
Spring, r (Ref #6)
6
Part #50617-MM5-000
Plate, step setting (Ref #7)
7
Part #50619-MT3-000
ШТИФТ ПОДНОЖКИ (Ref #8)
8
Part #50639-ML0-010
Arm, l. step (Ref #9)
9
Part #50642-MT3-305
Spring, l (Ref #10)
10
Part #50644-MM5-000
Cover, r. step (Ref #11)
11
Part #50653-MCS-A30
Rubber, step (Ref #12)
12
Part #50661-MT3-305
Holder, l. *nh146m* (Ref #13)
13
Part #50700-MCS-D90ZA
Cover, l. step (Ref #14)
14
Part #50753-MCS-A30
RUBBER (Ref #15)
15
Part #64586-MBW-D20
Stay a, cover (Ref #16)
16
Part #83470-MCS-D90
Stay b, cover (Ref #17)
17
Part #83471-MCS-D90
Bolt, socket (10x23) (Ref #18)
18
Part #90105-KAF-000
BOLT (Ref #19)
19
Part #90115-MT3-000
Bolt, socket (12x34) (Ref #20)
20
Part #90127-MCS-G00
Болт (Ref #21)
21
Part #92101-04010-0A
Bolt, cap (8x16) (Ref #22)
22
Part #92501-08016-0A
Шайба (Ref #23)
23
Part #94101-08000
PIN (Ref #24)
24
Part #94201-20150
Clip (2x50) (Ref #25)
25
Part #9459125000
Bolt, flange, 6x14 (Ref #26)
26
Part #95701-0601407
Болт (Ref #27)
27
Part #96300-0601600
