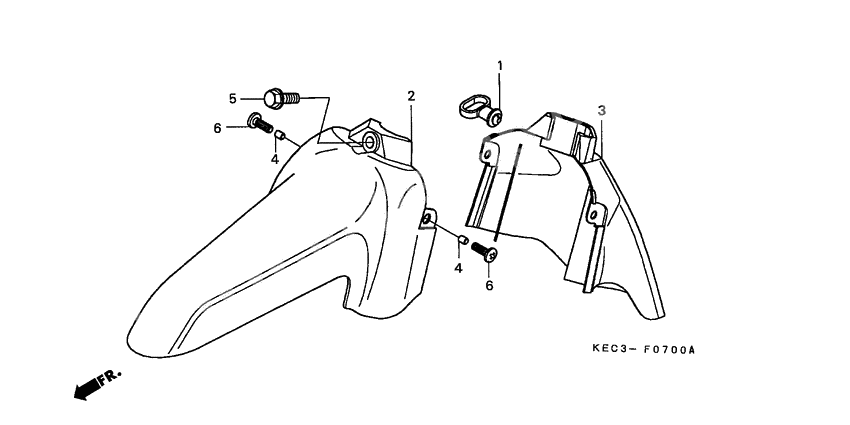

Front fender
Front fender
Grommet,wire (Ref #1)
1
Part #45451-GE2-000
Fender a,f*r240r* (Ref #2)
2
Part #61100-GBY-W30ZF
Fender a,f*g164r* (Ref #2)
2
Part #61100-GBY-W30ZC
Fender a,*gy108r* (Ref #2)
2
Part #61100-GBY-W30ZB
Fender a,*pb300r* (Ref #2)
2
Part #61100-GBY-W30ZE
Fender a,fro*nh1* (Ref #2)
2
Part #61100-GBY-W30ZD
Fender b,f*r240r* (Ref #3)
3
Part #61101-GBY-W30ZF
Fender b,f*g164r* (Ref #3)
3
Part #61101-GBY-W30ZC
Fender b,*gy108r* (Ref #3)
3
Part #61101-GBY-W30ZB
Fender b,*pb300r* (Ref #3)
3
Part #61101-GBY-W30ZE
Fender b,fro*nh1* (Ref #3)
3
Part #61101-GBY-W30ZD
Collar,fr fender (Ref #4)
4
Part #61105-GBY-910
Collar,fr fender (Ref #4)
4
Part #61105-GBY-910
Collar,fr fender (Ref #4)
4
Part #61105-GBY-910
Collar,fr fender (Ref #4)
4
Part #61105-GBY-910
BOLT (Ref #5)
5
Part #90111-162-000
Screw (6x14) (Ref #6)
6
Part #90110-GAH-000
Screw (6x14) (Ref #6)
6
Part #90110-GAH-000
Screw (6x14) (Ref #6)
6
Part #90110-GAH-000
Screw (6x14) (Ref #6)
6
Part #90110-GAH-000
