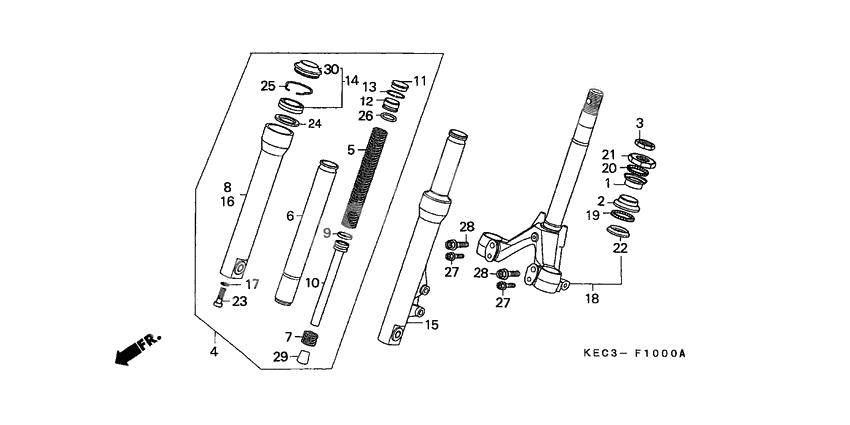

Front fork/front cushion
Front fork/front cushion
Race, steering upper ball (Ref #1)
1
Part #50301-GM0-000
Race, steering ball (Ref #2)
2
Part #50305-GC8-003
Nut, steering stem lock (Ref #3)
3
Part #50306-196-010
Fork assy,*nh35m* (Ref #4)
4
Part #51400-GBY-910ZA
SPRING,FR FORK (Ref #5)
5
Part #51401-GBY-910
Pipe comp,fr fork (Ref #6)
6
Part #51410-GBY-910
SPRING,REBOUND (Ref #7)
7
Part #51412-GBY-910
Case comp,*nh35m* (Ref #8)
8
Part #51420-GBY-910ZA
RING,PISTON (Ref #9)
9
Part #51437-GBY-910
Pipe comp,seat (Ref #10)
10
Part #51440-GBY-910
Cap,fork pipe (Ref #11)
11
Part #51449-GBY-910
Seat,spring upper (Ref #12)
12
Part #51454-GBY-910
Кольцо стопорное (Ref #13)
13
Part #51456-GBY-910
SEAL SET,FR FORK (Ref #14)
14
Part #51490-KEJ-900
Fork assy,*nh35m* (Ref #15)
15
Part #51500-GBY-910ZA
Case comp,*nh35m* (Ref #16)
16
Part #51520-GBY-910ZA
Шайба (Ref #17)
17
Part #90544-283-000
Stem set,fr (Ref #18)
18
Part #53210-GBY-910
Ball, steering steel (Ref #19)
19
Part #53210-GG2-751
Ball assy., steering steel (Ref #20)
20
Part #53210-GR1-751
Race, steering top cone (Ref #21)
21
Part #53211-GC8-003
Race, steering cone (Ref #22)
22
Part #53212-GC8-003
Bolt socket 8mm (Ref #23)
23
Part #90116-KEJ-900
Ring,back up (Ref #24)
24
Part #51412-KEJ-900
Ring, oil seal stop (Ref #25)
25
Part #90601-354-000
O RING (Ref #26)
26
Part #91356-GBY-910
Болт (Ref #27)
27
Part #95801-0804000
Болт (Ref #27)
27
Part #95801-0804000
Болт (Ref #27)
27
Part #95801-0804000
Болт (Ref #27)
27
Part #95801-0804000
Bolt,flange,10x40 (Ref #28)
28
Part #90101-GBY-910
Bolt,flange,10x40 (Ref #28)
28
Part #90101-GBY-910
Bolt,flange,10x40 (Ref #28)
28
Part #90101-GBY-910
Bolt,flange,10x40 (Ref #28)
28
Part #90101-GBY-910
PIECE,OIL LOCK (Ref #29)
29
Part #51432-KEJ-900
Уплотнение (Ref #30)
30
Part #91254-KEJ-900
