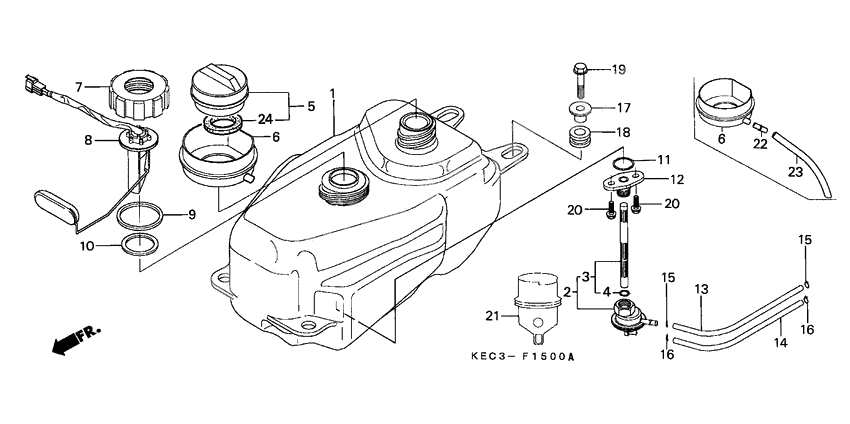

Fuel tank/fuel pump
Fuel tank/fuel pump
Tank comp,fuel (Ref #1)
1
Part #17510-GBY-910
Petcock assy., auto (Ref #2)
2
Part #16950-KJ9-752
Screen set (Ref #3)
3
Part #16952-GS7-950
O-ring, 9.0x1.3 (Ref #4)
4
Part #16958-397-771
Cap assy,fuel tan (Ref #5)
5
Part #17620-GBB-003
Tray,fuel (Ref #6)
6
Part #17525-GBY-910
Tray,fuel (Ref #6)
6
Part #17525-GBY-910
Tray,fuel (Ref #6)
6
Part #17525-GBY-910
Tray,fuel (Ref #6)
6
Part #17525-GBY-910
Body, fuel cap (Ref #7)
7
Part #17621-758-000
Set.fuel unit (Ref #8)
8
Part #37010-GBY-910
Collar,fuel unit (Ref #9)
9
Part #17517-GBB-000
Packing, base (Ref #10)
10
Part #37801-GA7-700
O-ring, 11.8x3.55 (Ref #11)
11
Part #16997-467-000
Plate,fuel cock s (Ref #12)
12
Part #17515-GBY-910
Трубка топливная (Ref #13)
13
Part #17681-GBY-910
Tube,vacuum (Ref #14)
14
Part #17684-GBY-910
CLIP (Ref #15)
15
Part #95002-02080
CLIP (Ref #15)
15
Part #95002-02080
CLIP (Ref #15)
15
Part #95002-02080
CLIP (Ref #15)
15
Part #95002-02080
CLIP (Ref #16)
16
Part #95002-02070
CLIP (Ref #16)
16
Part #95002-02070
CLIP (Ref #16)
16
Part #95002-02070
CLIP (Ref #16)
16
Part #95002-02070
Collar, radiator mounting (Ref #17)
17
Part #19052-MB0-000
Rubber a, rr. fender (Ref #18)
18
Part #80105-028-000
BOLT (Ref #19)
19
Part #95701-060-250-0
BOLT (Ref #20)
20
Part #96001-060-120-0
BOLT (Ref #20)
20
Part #96001-060-120-0
BOLT (Ref #20)
20
Part #96001-060-120-0
BOLT (Ref #20)
20
Part #96001-060-120-0
COVER,FUEL COCK (Ref #21)
21
Part #17517-KEC-000
Joint, fuel tube (Ref #22)
22
Part #17525-KBN-900
Труба, дренажная (Ref #23)
23
Part #17526-GBY-910
Прокладка (Ref #24)
24
Part #17624-GBB-003
-
216950-GS7-950
Petcock assy., auto
1Replaced by 16950-KJ9-752 Доступно: Нет в наличии
