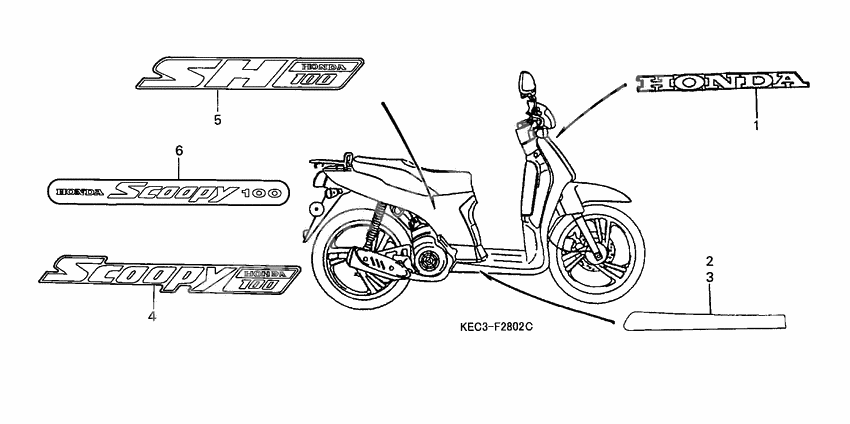

Mark/stripe 3
Mark/stripe 3
Mark,front*type7* (Ref #1)
1
Part #87125-GBY-W30ZA
Mark,front*type3* (Ref #1)
1
Part #87125-GBY-W30ZE
Mark,front*type2* (Ref #1)
1
Part #87125-GBY-W30ZD
Mark,front*type1* (Ref #1)
1
Part #87125-GBY-W30ZC
Mark,front*type6* (Ref #1)
1
Part #87125-GBY-W30ZF
Stripe,r f*type4* (Ref #2)
2
Part #87128-GBY-910ZD
Stripe,r f*type6* (Ref #2)
2
Part #87128-GBY-W00ZA
Stripe,r f*type7* (Ref #2)
2
Part #87128-GBY-W00ZB
Stripe,r *type10* (Ref #2)
2
Part #87128-GBY-S20ZA
Stripe,r f*type9* (Ref #2)
2
Part #87128-GBY-W10ZA
Stripe,l f*type4* (Ref #3)
3
Part #87129-GBY-910ZD
Stripe,l f*type7* (Ref #3)
3
Part #87129-GBY-W00ZB
Stripe,l f*type6* (Ref #3)
3
Part #87129-GBY-W00ZA
Stripe,l *type10* (Ref #3)
3
Part #87129-GBY-S20ZA
Stripe,l f*type9* (Ref #3)
3
Part #87129-GBY-W10ZA
Mark,body *type1* (Ref #5)
5
Part #87138-KEC-880ZB
Mark,body *type7* (Ref #5)
5
Part #87138-KEC-880ZF
Mark,body *type6* (Ref #5)
5
Part #87138-KEC-880ZE
Mark,body *type3* (Ref #5)
5
Part #87138-KEC-880ZD
Mark,body *type2* (Ref #5)
5
Part #87138-KEC-880ZC
