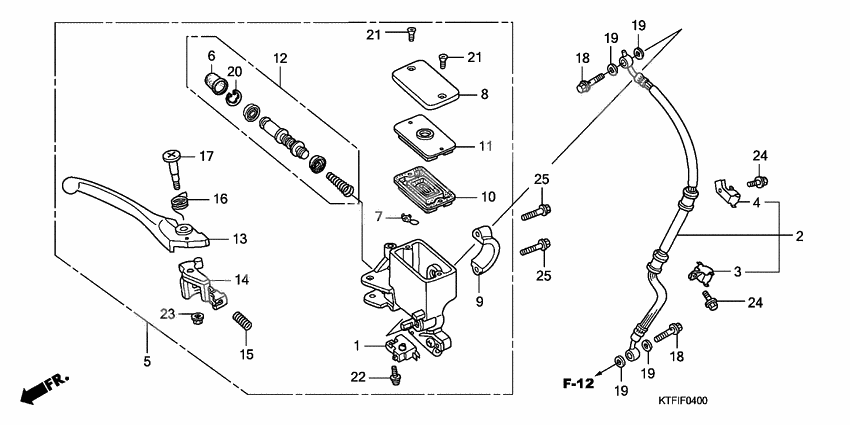

Fr. brake master cylinder SH125D9/150D9
Fr. brake master cylinder SH125D9/150D9
Switch, fr. stop (Ref #1)
1
Part #35340-MA5-671
Hose, fr, brake (Ref #2)
2
Part #45126-KTF-641
Clamper b,brk hos (Ref #3)
3
Part #45127-KPR-900
Clamper,brk hose (Ref #4)
4
Part #45128-KPR-900
M/c assy,fr (Ref #5)
5
Part #45500-KPR-901
Ботинок (Ref #6)
6
Part #45504-410-003
PROTECTOR (Ref #7)
7
Part #45512-MA6-006
Cap, master cylinder (Ref #8)
8
Part #45513-HA2-006
HOLDER (Ref #9)
9
Part #45517-166-006
DIAPHRAGM (Ref #10)
10
Part #45520-MG7-006
Пластина (Ref #11)
11
Part #45521-HA2-006
Master cylinder set (Ref #12)
12
Part #45530-471-831
Lever,r strg hand (Ref #13)
13
Part #53175-GCS-006
Knocker (Ref #14)
14
Part #53190-KPR-900
Spring, return (Ref #15)
15
Part #53198-GBL-870
Пружина (Ref #16)
16
Part #53199-GCS-010
Bolt, handle lever (Ref #17)
17
Part #90114-GBL-871
Bolt, oil (10x22) (Ref #18)
18
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #18)
18
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #18)
18
Part #90145-MS9-612
Bolt, oil (10x22) (Ref #18)
18
Part #90145-MS9-612
Circlip (Ref #20)
20
Part #90651-MA5-671
Болт (Ref #21)
21
Part #93600-040120G
Болт (Ref #21)
21
Part #93600-040120G
Болт (Ref #21)
21
Part #93600-040120G
Болт (Ref #21)
21
Part #93600-040120G
Screw-washer (Ref #22)
22
Part #93893-040-120-7
Гайка (Ref #23)
23
Part #94050-06000
BOLT (Ref #24)
24
Part #96001-060-160-0
BOLT (Ref #24)
24
Part #96001-060-160-0
BOLT (Ref #24)
24
Part #96001-060-160-0
BOLT (Ref #24)
24
Part #96001-060-160-0
Bolt, flange, 6x22 (Ref #25)
25
Part #96001-0602200
Bolt, flange, 6x22 (Ref #25)
25
Part #96001-0602200
Bolt, flange, 6x22 (Ref #25)
25
Part #96001-0602200
Bolt, flange, 6x22 (Ref #25)
25
Part #96001-0602200
