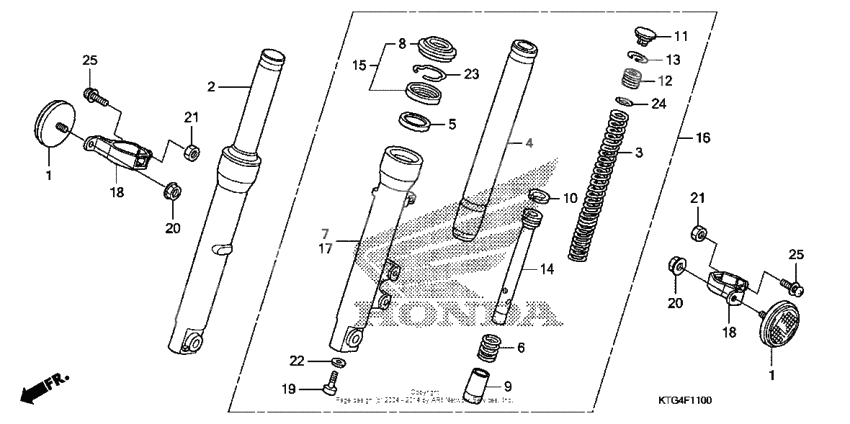

Front fork
Front fork
Reflector, fr. (Ref #1)
1
Part #33742-HB9-641
Reflector, fr. (Ref #1)
1
Part #33742-HB9-641
Reflector, fr. (Ref #1)
1
Part #33742-HB9-641
Reflector, fr. (Ref #1)
1
Part #33742-HB9-641
Fork, r, fr, (c00) (Ref #2)
2
Part #51400-KTG-305
Spring, fr. fork (Ref #3)
3
Part #51401-KTF-641
Pipe, fr. fork (Ref #4)
4
Part #51410-KTF-641
Ring, back-up (Ref #5)
5
Part #51412-GC4-731
SPRING,REBOUND (Ref #6)
6
Part #51412-KFG-003
Case, r. (lower) (Ref #7)
7
Part #51420-KTF-641
DUST SEAL (Ref #8)
8
Part #51425-KL8-901
Piece, oil lock (Ref #9)
9
Part #51432-KTF-641
Кольцо поршневое (Ref #10)
10
Part #51437-KFG-003
Cap, fork pipe (Ref #11)
11
Part #51449-KFG-003
Пружина (Ref #12)
12
Part #51454-KFG-003
Ring (29.8x1.2) (Ref #13)
13
Part #51456-KFG-003
Pipe, seat (Ref #14)
14
Part #51470-KTF-B21
Seal set, fr. fork (Ref #15)
15
Part #51490-KL8-900
Fork, l, fr, (c00) (Ref #16)
16
Part #51500-KTG-305
Case, l. (lower) (Ref #17)
17
Part #51520-KTF-641
Stay, fr. reflector (Ref #18)
18
Part #61104-KPB-670
Stay, fr. reflector (Ref #18)
18
Part #61104-KPB-670
Stay, fr. reflector (Ref #18)
18
Part #61104-KPB-670
Stay, fr. reflector (Ref #18)
18
Part #61104-KPB-670
Bolt, socket (8mm) (Ref #19)
19
Part #90116-383-721
Nut, u, 6mm (Ref #20)
20
Part #90301-473-003
Nut, u, 6mm (Ref #20)
20
Part #90301-473-003
Nut, u, 6mm (Ref #20)
20
Part #90301-473-003
Nut, u, 6mm (Ref #20)
20
Part #90301-473-003
Nut, hex., 5mm (Ref #21)
21
Part #90302-435-761
Nut, hex., 5mm (Ref #21)
21
Part #90302-435-761
Nut, hex., 5mm (Ref #21)
21
Part #90302-435-761
Nut, hex., 5mm (Ref #21)
21
Part #90302-435-761
Шайба (Ref #22)
22
Part #90544-283-000
RING (Ref #23)
23
Part #90601-369-000
Прокладка (Ref #24)
24
Part #91356-KFG-003
Screw-washer (Ref #25)
25
Part #93891-050-200-0
Screw-washer (Ref #25)
25
Part #93891-050-200-0
Screw-washer (Ref #25)
25
Part #93891-050-200-0
Screw-washer (Ref #25)
25
Part #93891-050-200-0
