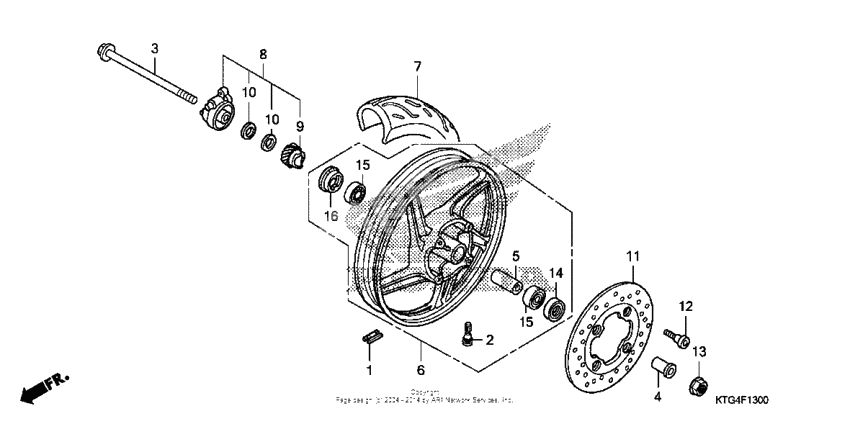

Front wheel
Front wheel
Weight, balance (30) (Ref #1)
1
Part #42706-MCF-D60
Грузик (Ref #1)
1
Part #42705-MCF-D60
Грузик (Ref #1)
1
Part #42704-MCF-D60
Клапан, обод колеса (Ref #2)
2
Part #42753-ML7-003
Axle, fr. wheel (Ref #3)
3
Part #44301-KGF-900
Colr, fr. wheel side (Ref #4)
4
Part #44311-KGF-900
Collar, fr (Ref #5)
5
Part #44620-GCM-900
Wheel sub *nh365m* (Ref #6)
6
Part #44650-KTG-305ZA
Tire, fr. (Ref #7)
7
Part #44711-KPR-903
Tire, fr, (Ref #7)
7
Part #44711-KTF-641
Box assy (Ref #8)
8
Part #44800-KTF-641
Gear, speedometer (Ref #9)
9
Part #44806-KTF-640
Шайба (Ref #10)
10
Part #44809-170-003
Шайба (Ref #10)
10
Part #44809-170-003
Шайба (Ref #10)
10
Part #44809-170-003
Шайба (Ref #10)
10
Part #44809-170-003
Disk, fr. brake (Ref #11)
11
Part #45351-KGF-900
Bolt, disk (8x24) (Ref #12)
12
Part #90105-MV9-003
Nut, u flange (12mm) (Ref #13)
13
Part #90306-KTZ-D01
Dust seal (20x32x5) (Ref #14)
14
Part #90754-GC8-005
B/brg,rad,n/com. (Ref #15)
15
Part #90912-GC8-005
B/brg,rad,n/com. (Ref #15)
15
Part #90912-GC8-005
B/brg,rad,n/com. (Ref #15)
15
Part #90912-GC8-005
B/brg,rad,n/com. (Ref #15)
15
Part #90912-GC8-005
Bearing (6201u) (Ref #15)
15
Part #90912-GC8-003
Bearing (6201u) (Ref #15)
15
Part #90912-GC8-003
Bearing (6201u) (Ref #15)
15
Part #90912-GC8-003
Bearing (6201u) (Ref #15)
15
Part #90912-GC8-003
Валик (Ref #16)
16
Part #91258-KM1-004
