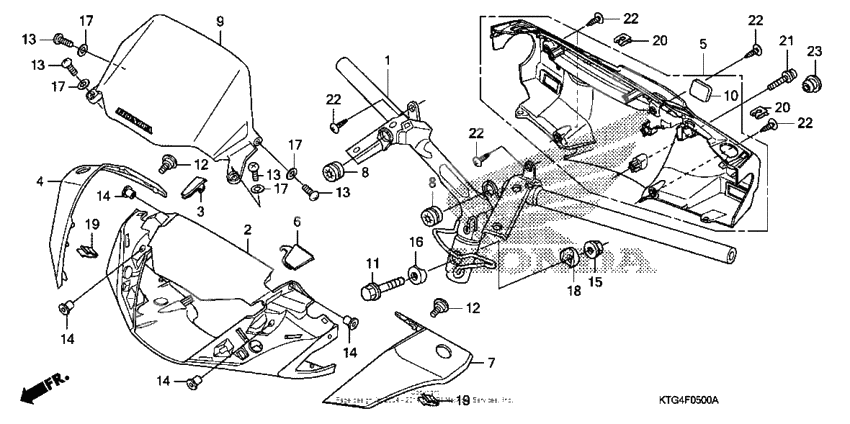

Handlebar + handle cover
Handlebar + handle cover
Handlebar (c00) (Ref #1)
1
Part #53100-KTG-305
Cover, fr. *nh1* (Ref #2)
2
Part #53205-KTG-A10ZA
Cap, r. *nh1* (Ref #3)
3
Part #53207-KTF-980ZA
Garnish, r. *nha84p* (Ref #4)
4
Part #53208-KTF-B20ZC
Garnish, r. *r302m* (Ref #4)
4
Part #53208-KTF-B20ZE
Cover set, rr. *nh1* (Ref #5)
5
Part #53211-KTG-A10ZA
Cap, l. *nh1* (Ref #6)
6
Part #53217-KTF-980ZA
Garnish, l. *r302m* (Ref #7)
7
Part #53218-KTF-B20ZE
Garnish, l. *nha84p* (Ref #7)
7
Part #53218-KTF-B20ZC
RUBBER (Ref #8)
8
Part #61304-415-000
RUBBER (Ref #8)
8
Part #61304-415-000
RUBBER (Ref #8)
8
Part #61304-415-000
RUBBER (Ref #8)
8
Part #61304-415-000
Visor set, fr. (Ref #9)
9
Part #67200-KTG-A10
Emblem, product (Ref #10)
10
Part #86150-GFC-902
Emblem, product (Ref #10)
10
Part #86150-GFC-901
Bolt, flange, 10x50 (Ref #11)
11
Part #90106-GN5-900
Screw (5x16) (Ref #12)
12
Part #90109-KW3-000
Screw (5x16) (Ref #12)
12
Part #90109-KW3-000
Screw (5x16) (Ref #12)
12
Part #90109-KW3-000
Screw (5x16) (Ref #12)
12
Part #90109-KW3-000
Nut, u flange (10mm) (Ref #15)
15
Part #90304-GBL-003
Collar a (Ref #16)
16
Part #90501-GBY-910
Collar b (Ref #18)
18
Part #90502-GBY-910
CLIP (Ref #19)
19
Part #90666-SDA-A01
CLIP (Ref #19)
19
Part #90666-SDA-A01
CLIP (Ref #19)
19
Part #90666-SDA-A01
CLIP (Ref #19)
19
Part #90666-SDA-A01
Nut, clip (5mm) (Ref #20)
20
Part #90677-KAN-961
Nut, clip (5mm) (Ref #20)
20
Part #90677-KAN-961
Nut, clip (5mm) (Ref #20)
20
Part #90677-KAN-961
Nut, clip (5mm) (Ref #20)
20
Part #90677-KAN-961
Screw-washer, 5x20 (Ref #21)
21
Part #93891-0502007
