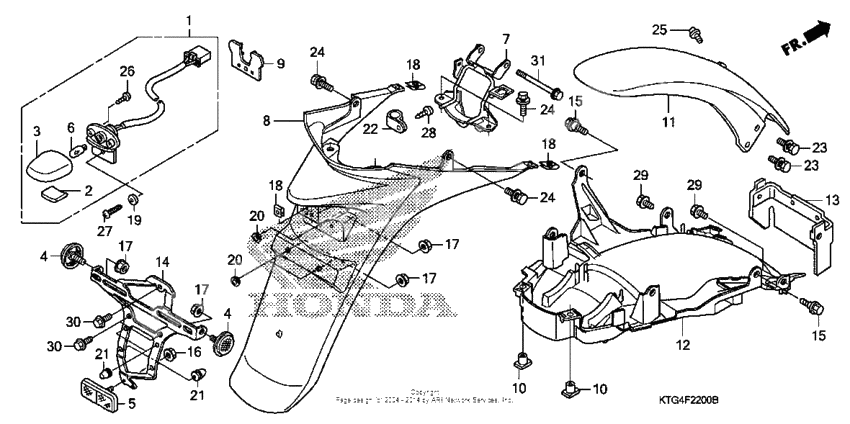

Rear fender
Rear fender
Колесо дисковое (Ref #1)
1
Part #33720-KTG-305
Линза (Ref #2)
2
Part #33721-KTG-305
Cover, license light (Ref #3)
3
Part #33723-KTW-900
Reflector, rr. reflex (Ref #4)
4
Part #33741-HB9-641
Reflector, rr. reflex (Ref #4)
4
Part #33741-HB9-641
Reflector, rr. reflex (Ref #4)
4
Part #33741-HB9-641
Reflector, rr. reflex (Ref #4)
4
Part #33741-HB9-641
Reflector, reflex (stanley) (Ref #5)
5
Part #33741-MS6-921
Bulb (12v 5w) (Ref #6)
6
Part #34908-KS3-900
Stay, rr. fender (Ref #7)
7
Part #50320-KTF-980
Fender a, rr. (Ref #8)
8
Part #80100-KTG-A10
Кольцо/шайба (Ref #9)
9
Part #80102-KTG-A10
Nut, rr. fender (Ref #10)
10
Part #80104-KJ2-000
Nut, rr. fender (Ref #10)
10
Part #80104-KJ2-000
Nut, rr. fender (Ref #10)
10
Part #80104-KJ2-000
Nut, rr. fender (Ref #10)
10
Part #80104-KJ2-000
Fender c, rr. *nh1* (Ref #11)
11
Part #80105-KPR-900ZA
Fender b, rr. (Ref #12)
12
Part #80106-KTF-980
Plate, splash guard (Ref #13)
13
Part #80108-KTF-640
Brkt, number plate (Ref #14)
14
Part #84701-KTG-A10
BOLT (Ref #15)
15
Part #90111-162-000
BOLT (Ref #15)
15
Part #90111-162-000
BOLT (Ref #15)
15
Part #90111-162-000
BOLT (Ref #15)
15
Part #90111-162-000
Nut, flange (5mm) (Ref #16)
16
Part #90301-MG8-000
Шайба (Ref #19)
19
Part #90515-GN5-910
Washer, fr (Ref #20)
20
Part #90556-044-000
Washer, fr (Ref #20)
20
Part #90556-044-000
Washer, fr (Ref #20)
20
Part #90556-044-000
Washer, fr (Ref #20)
20
Part #90556-044-000
Plug, cone type (Ref #21)
21
Part #90899-422-610
Plug, cone type (Ref #21)
21
Part #90899-422-610
Plug, cone type (Ref #21)
21
Part #90899-422-610
Plug, cone type (Ref #21)
21
Part #90899-422-610
CLIP (Ref #22)
22
Part #91475-SB6-000
Bolt-washer (6x14) (Ref #23)
23
Part #93404-0601407
Bolt-washer (6x14) (Ref #23)
23
Part #93404-0601407
Bolt-washer (6x14) (Ref #23)
23
Part #93404-0601407
Bolt-washer (6x14) (Ref #23)
23
Part #93404-0601407
Screw-washer (Ref #25)
25
Part #93894-050-120-7
Screw,3x10 (Ref #26)
26
Part #93901-32280
Screw, tap (4x20) (Ref #27)
27
Part #9390134580
Болт (Ref #28)
28
Part #93903-34380
Bolt, flange, 6x8 (Ref #29)
29
Part #95701-0600800
Bolt, flange, 6x8 (Ref #29)
29
Part #95701-0600800
Bolt, flange, 6x8 (Ref #29)
29
Part #95701-0600800
Bolt, flange, 6x8 (Ref #29)
29
Part #95701-0600800
Bolt, flange, 6x14 (Ref #30)
30
Part #95701-0601407
Bolt, flange, 6x14 (Ref #30)
30
Part #95701-0601407
Bolt, flange, 6x14 (Ref #30)
30
Part #95701-0601407
Bolt, flange, 6x14 (Ref #30)
30
Part #95701-0601407
Bolt, flange, 6x60 (Ref #31)
31
Part #95701-0606000
