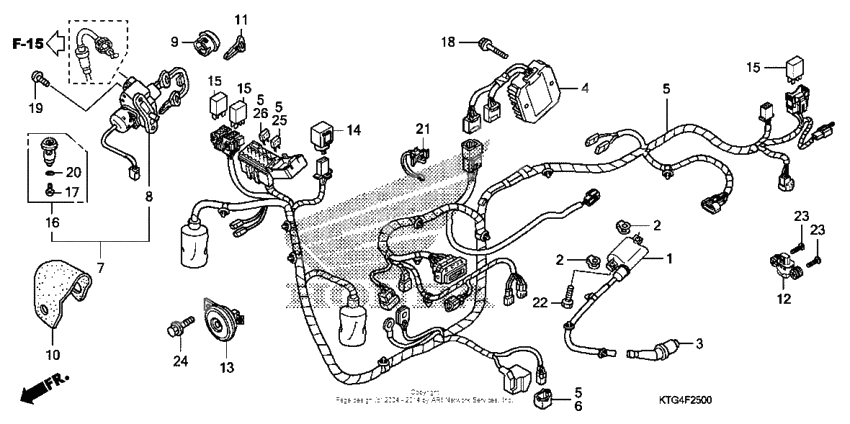

Wire harness
Wire harness
Катушка зажигания (Ref #1)
1
Part #30510-KTZ-D00
Кольцо/шайба (Ref #2)
2
Part #30520-ML7-000
Кольцо/шайба (Ref #2)
2
Part #30520-ML7-000
Кольцо/шайба (Ref #2)
2
Part #30520-ML7-000
Кольцо/шайба (Ref #2)
2
Part #30520-ML7-000
Cap assy. (Ref #3)
3
Part #30700-GAR-000
Rectifier, regulate (Ref #4)
4
Part #31600-KTF-641
Cap, dummy (4p) (Ref #6)
6
Part #32606-GEV-761
Отсутствующе (Ref #8)
8
Part #35010-KTF-980
COVER (Ref #9)
9
Part #35105-KTF-640
Guard (Ref #10)
10
Part #35107-KTF-640
KEY,BLANK (Ref #11)
11
Part #35121-KPZ-900
Sensor, bank angle (Ref #12)
12
Part #35160-GFM-K01
Horn (Ref #13)
13
Part #38110-KTZ-D00
Relay, turn signal (Ref #14)
14
Part #38301-MEG-000
Болт (Ref #18)
18
Part #90102-KAB-000
Bolt, one-way (6x12) (Ref #19)
19
Part #90105-KEB-620
Ременная лента кабель (Ref #21)
21
Part #90672-SA0-003
Bolt, hex., 6x20 (Ref #22)
22
Part #92101-06020-4J
Болт (Ref #23)
23
Part #93500-040-200-H
Болт (Ref #23)
23
Part #93500-040-200-H
Болт (Ref #23)
23
Part #93500-040-200-H
Болт (Ref #23)
23
Part #93500-040-200-H
Bolt, flange, 8x12 (Ref #24)
24
Part #95701-0801200
Fuse (Ref #25)
25
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #26)
26
Part #98200-41500
