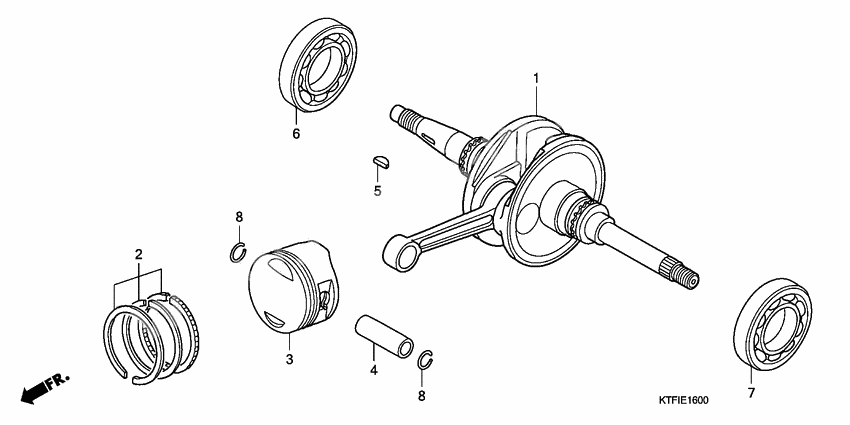

Crankshaft/piston
Crankshaft/piston
Вал коленчатый (Ref #1)
1
Part #13000-KGG-910
Комплект колец (Ref #2)
2
Part #13011-KGG-911
Ring set (0.50) (Ref #2)
2
Part #13031-KGG-911
Ring set (0.25) (Ref #2)
2
Part #13021-KGG-911
Piston (0.25) (Ref #3)
3
Part #13102-KGG-911
Piston (std) (Ref #3)
3
Part #13101-KGG-911
Piston,os 0.50 (Ref #3)
3
Part #13103-KGG-911
Pin.piston (Ref #4)
4
Part #13111-KGG-910
Key, woodruff (4mm) (Ref #5)
5
Part #90741-KS4-020
Bearing (6207) (Ref #6)
6
Part #91005-KGF-911
Bearing (6207) (Ref #7)
7
Part #91006-KGF-911
Clip, piston pin, 14mm (Ref #8)
8
Part #94601-14000
Clip, piston pin, 14mm (Ref #8)
8
Part #94601-14000
Clip, piston pin, 14mm (Ref #8)
8
Part #94601-14000
Clip, piston pin, 14mm (Ref #8)
8
Part #94601-14000
