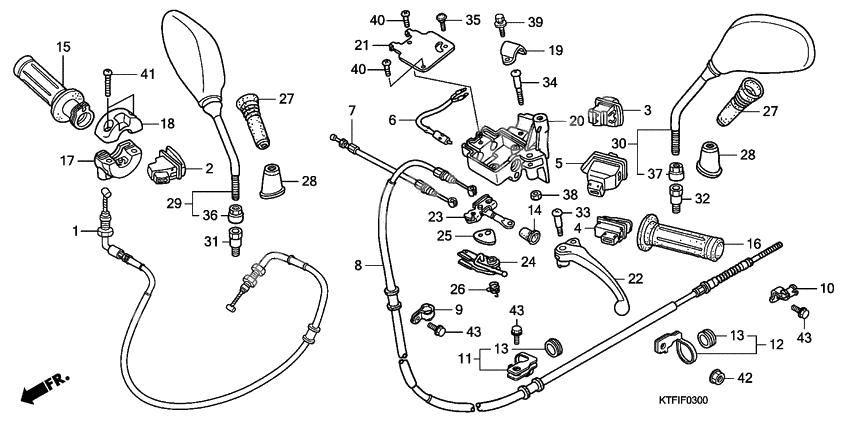

Handle lever/switch/cable SH125D9/150D9
Handle lever/switch/cable SH125D9/150D9
Cable, throttle (Ref #1)
1
Part #17910-KTF-981
Switch unit, starter (Ref #2)
2
Part #35160-KFG-003
Switch unit (Ref #3)
3
Part #35170-KFG-013
Switch unit, horn (Ref #4)
4
Part #35180-KCW-J40
Switch, turn signal (Ref #5)
5
Part #35200-KVB-900
Switch, fr. stop (Ref #6)
6
Part #35340-GCC-J71
Cable, fr (Ref #7)
7
Part #43440-KTF-640
Cable, rr. brake (Ref #8)
8
Part #43450-KTF-B20
Clamper,rr brk ca (Ref #9)
9
Part #43455-GCK-000
Clamper,rr brk ca (Ref #10)
10
Part #43456-KGF-900
Guide assy,brk ca (Ref #11)
11
Part #43460-KEY-900
Guide assy,brk ca (Ref #12)
12
Part #43460-KGF-900
Guide, cable (inner) (Ref #13)
13
Part #45466-329-000
Guide, cable (inner) (Ref #13)
13
Part #45466-329-000
Guide, cable (inner) (Ref #13)
13
Part #45466-329-000
Guide, cable (inner) (Ref #13)
13
Part #45466-329-000
Ботинок (Ref #14)
14
Part #45504-410-003
Grip comp,throt (Ref #15)
15
Part #53140-KPZ-900
Grip,l.handle (Ref #16)
16
Part #53166-GW2-000
Housing,und throt (Ref #17)
17
Part #53167-GAH-A00
Housing,up throt (Ref #18)
18
Part #53168-GAH-A00
Band,handle brkt (Ref #19)
19
Part #53171-GBL-870
Bracket, l (Ref #20)
20
Part #53172-KPR-901
Cover,l brk lever (Ref #21)
21
Part #53173-KPR-900
Lever,l strg hand (Ref #22)
22
Part #53178-GCS-000
Equalizer (Ref #23)
23
Part #53184-KPR-900
Arm, rr. brake lock (Ref #24)
24
Part #53185-KPR-900
Крышка (Ref #25)
25
Part #53186-KPR-900
Пружина (Ref #26)
26
Part #53188-GBL-870
Boot, mirror (upper) (Ref #27)
27
Part #88113-KPR-900
Boot, mirror (upper) (Ref #27)
27
Part #88113-KPR-900
Boot, mirror (upper) (Ref #27)
27
Part #88113-KPR-900
Boot, mirror (upper) (Ref #27)
27
Part #88113-KPR-900
Boot, mirror (lower) (Ref #28)
28
Part #88114-KPR-900
Boot, mirror (lower) (Ref #28)
28
Part #88114-KPR-900
Boot, mirror (lower) (Ref #28)
28
Part #88114-KPR-900
Boot, mirror (lower) (Ref #28)
28
Part #88114-KPR-900
Mirror, r. (Ref #29)
29
Part #88210-KTF-305
Mirror, l. (Ref #30)
30
Part #88220-KTF-305
Bolt, adapter (8mm) (Ref #31)
31
Part #90102-KTF-B20
Bolt, adapter (8mm) (Ref #32)
32
Part #90103-KTF-B20
Болт (Ref #33)
33
Part #90113-KGF-900
Болт (Ref #34)
34
Part #90115-GBL-870
Screw, pan (5x13) (Ref #35)
35
Part #90117-MN5-000
Nut, lock (Ref #36)
36
Part #90134-GM8-000
Nut,lock lh (Ref #37)
37
Part #90135-KGF-900
Nut, hex., 5mm (Ref #38)
38
Part #90302-435-761
Bolt-washer (Ref #39)
39
Part #93401-060-200-0
Болт (Ref #40)
40
Part #93500-050-120-H
Болт (Ref #40)
40
Part #93500-050-120-H
Болт (Ref #40)
40
Part #93500-050-120-H
Болт (Ref #40)
40
Part #93500-050-120-H
Screw, pan, 5x22 (Ref #41)
41
Part #93500-050220A
Гайка (Ref #42)
42
Part #94050-06000
