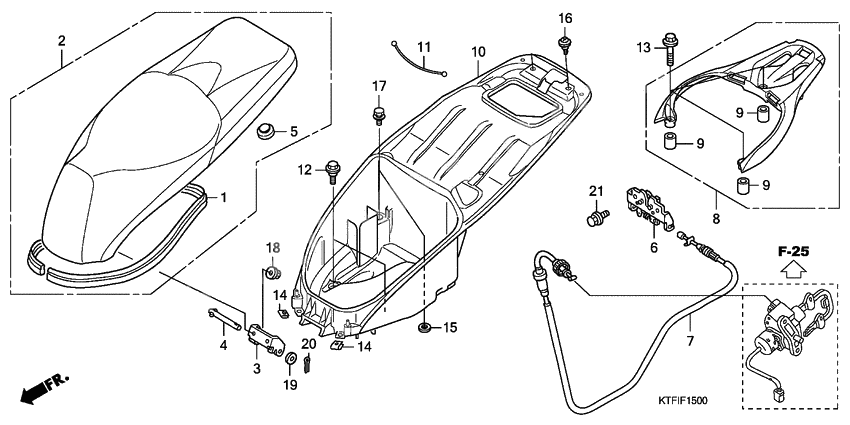

Seat/luggage box
Seat/luggage box
Воздухопровод радиатора (Ref #1)
1
Part #77115-KPR-900
Seat, double (Ref #2)
2
Part #77200-KTF-981
Hinge,seat (Ref #3)
3
Part #77201-KPR-900
PIN,SEAT HINGE (Ref #4)
4
Part #77206-KPR-900
Rubber b (Ref #5)
5
Part #77215-GC2-000
Catch, seat (Ref #6)
6
Part #77230-KPR-900
Cable, seat lock (Ref #7)
7
Part #77240-KTF-641
Carrier *nhb18m* (Ref #8)
8
Part #81200-KTF-980ZA
Box, luggage (Ref #10)
10
Part #81250-KTF-980
Band, owner's manual (Ref #11)
11
Part #81270-KTF-980
BOLT (Ref #12)
12
Part #90111-162-000
Bolt (8x26) (Ref #13)
13
Part #90183-438-000
Гайка (Ref #14)
14
Part #90302-SA4-003
Гайка (Ref #14)
14
Part #90302-SA4-003
Гайка (Ref #14)
14
Part #90302-SA4-003
Гайка (Ref #14)
14
Part #90302-SA4-003
Шайба (Ref #15)
15
Part #90501-KTF-D60
Screw, pan (5x11.5) (Ref #16)
16
Part #91509-KY4-900
Bolt-washer, 6x12 (Ref #17)
17
Part #93404-0601200
Гайка (Ref #18)
18
Part #94050-06000
Шайба (Ref #19)
19
Part #94101-06800
PIN (Ref #20)
20
Part #9420116250
BOLT (Ref #21)
21
Part #95701-060-100-7
