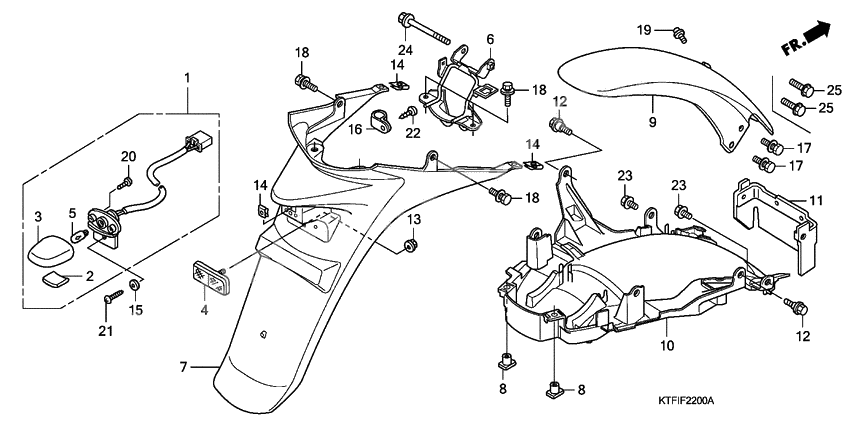

Rear fender
Rear fender
Light assy (Ref #1)
1
Part #33720-KTF-980
Lens,license ligh (Ref #2)
2
Part #33721-KPR-900
Cover, license light (Ref #3)
3
Part #33723-KTW-900
REFLECTOR (Ref #4)
4
Part #33741-GT8-652
Bulb (12v 5w) (Ref #5)
5
Part #34908-KS3-900
Stay, rr. fender (Ref #6)
6
Part #50320-KTF-980
Боковина задняя левая (Ref #7)
7
Part #80100-KTF-980
Nut, rr. fender (Ref #8)
8
Part #80104-KJ2-000
Nut, rr. fender (Ref #8)
8
Part #80104-KJ2-000
Nut, rr. fender (Ref #8)
8
Part #80104-KJ2-000
Nut, rr. fender (Ref #8)
8
Part #80104-KJ2-000
Fender c, rr. *nh1* (Ref #9)
9
Part #80105-KPR-900ZA
Fender b, rr. (Ref #10)
10
Part #80106-KTF-980
Plate, splash guard (Ref #11)
11
Part #80108-KTF-640
BOLT (Ref #12)
12
Part #90111-162-000
BOLT (Ref #12)
12
Part #90111-162-000
BOLT (Ref #12)
12
Part #90111-162-000
BOLT (Ref #12)
12
Part #90111-162-000
Nut, flange (5mm) (Ref #13)
13
Part #90301-MG8-000
Шайба (Ref #15)
15
Part #90515-GN5-910
CLIP (Ref #16)
16
Part #91475-SB6-000
Bolt-washer (6x14) (Ref #17)
17
Part #93404-0601407
Bolt-washer (6x14) (Ref #17)
17
Part #93404-0601407
Bolt-washer (6x14) (Ref #17)
17
Part #93404-0601407
Bolt-washer (6x14) (Ref #17)
17
Part #93404-0601407
Screw-washer (Ref #19)
19
Part #93894-050-120-7
Screw,3x10 (Ref #20)
20
Part #93901-32280
Болт (Ref #21)
21
Part #93901-34480
Болт (Ref #22)
22
Part #93903-34380
Bolt, flange, 6x8 (Ref #23)
23
Part #95701-0600800
Bolt, flange, 6x8 (Ref #23)
23
Part #95701-0600800
Bolt, flange, 6x8 (Ref #23)
23
Part #95701-0600800
Bolt, flange, 6x8 (Ref #23)
23
Part #95701-0600800
Bolt, flange, 6x60 (Ref #24)
24
Part #95701-0606000
